General Information

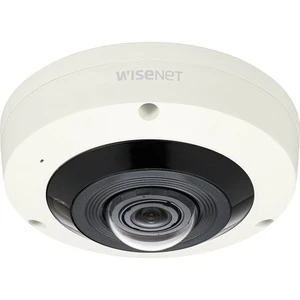

Wisenet X powered by Wisenet 5 network outdoor vandal fisheye, 6 MP CMOS sensor, 2048×2048 @ 30fps with WDR off/on(120dB), 1.6mm fixed lens (192°), H.265/H.264/MJPEG, WiseStream II compression technology, true WDR, USB port for easy installation, advanced video/audio and business analytics, simple focus, dual SD card, HLC, Defog detection, DIS , 12VDC/PoE, IP66, IK10

Technical Information

HD Recording:	Yes
Night Vision:	Yes
Night Vision Distance:	49.21 ft
Night Vision Type:	Infrared

Display & Graphics

Image Sensor Type:	CMOS
Color Supported:	Color
Field of View:	H : 192 ? / V : 192 ? / D : 192 ?
Effective Camera Resolution:	6 Megapixel

Video

Video Formats:	H.265
Video Formats:	H.264
Video Formats:	MJPEG
Maximum Video Resolution:	2048 x 2048
Maximum Frame Rate:	30 fps

Lens

Lens Type:	Fixed
Maximum Focal Length:	1.60 mm
Lens Included:	Yes
Maximum Aperture:	f/1.6

Exposure

Shortest Shutter Speed:	1/12000 Second
Longest Shutter Speed:	2 Second

Network & Communication

Connectivity Technology:	Wired
Remote Management:	Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:	12 V DC
Power Source Type:	DC
Power Source Type:	PoE

Physical Characteristics

Mount Type:	Gooseneck
Mount Type:	Wall Mount
Mount Type:	Pendant Mount
Mount Type:	Parapet Mount
Mount Type:	Ceiling Mount
Mount Type:	Pole Mount
Mount Type:	Corner Mount
Mount Type:	Flush Mount
Form Factor:	Fisheye
Durability:	Vandal Resistant
Height:	2.6″
Diameter:	5.7″
Weight (Approximate):	1.73 lb

Environmental Conditions

Minimum Operating Temperature:	-40°F (-40°C)
Maximum Operating Temperature:	131°F (55°C)
Operating Humidity:	90%

Miscellaneous

Features:	Built-in IR LED
Features:	SD Card Local Storage
Features:	Highlight Compensation (HLC)
Features:	Back Light Compensation (BLC)
Features:	Day/Night
Indoor/Outdoor:	Outdoor
Impact Protection Rating:	IK10
Ingress Protection Rating:	IP66
NDAA Compliant:	Yes
