General Information

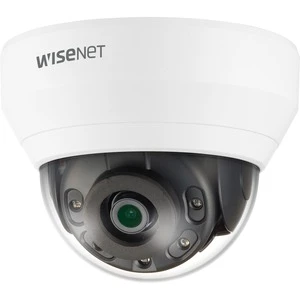

The QND-6012R from Hanwha’s Q Series affordable network camera line is a 2 Megapixel indoor dome network camera featuring WiseStream II, Hanwha’s compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, IR, PoE/12VDC, 120dB True WDR, Intelligent Video Analytics, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).

Technical Information

Recording Formats:	Full HD
HD Recording:	Yes
Night Vision:	Yes
Night Vision Distance:	65.62 ft
Night Vision Type:	Infrared

Display & Graphics

Image Sensor Type:	CMOS
Color Supported:	Color
Color Supported:	Monochrome
Field of View:	H : 113.74 V : 61.5° D : 134.45°
Effective Camera Resolution:	2 Megapixel

Video

Video Formats:	H.264
Video Formats:	MJPEG
Video Formats:	H.265
Maximum Video Resolution:	1920 x 1080
Maximum Frame Rate:	30 fps

Lens

Lens Type:	Fixed
Maximum Focal Length:	2.80 mm
Lens Included:	Yes
Maximum Aperture:	f/2

Exposure

Shortest Shutter Speed:	1/12000 Second
Longest Shutter Speed:	1/5 Second

Network & Communication

Connectivity Technology:	Wired
Remote Management:	Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:	125 V DC
Power Source Type:	DC

Physical Characteristics

Mount Type:	Wall Mount
Mount Type:	Ceiling Mount
Form Factor:	Dome
Product Color:	White
Height:	3.4″
Diameter:	4.3″
Weight (Approximate):	8.99 oz

Environmental Conditions

Minimum Operating Temperature:	14°F (-10°C)
Maximum Operating Temperature:	131°F (55°C)
Operating Humidity:	90%

Miscellaneous

Features:	SD Card Local Storage
Features:	Back Light Compensation (BLC)
Features:	Wide Dynamic Range
Features:	Digital Noise Reduction
Features:	Motion Detection
Features:	Gain Control
Features:	White Balance
Features:	Day/Night
Indoor/Outdoor:	Indoor
NDAA Compliant:	Yes
