General Information

Key Features

H.265 Compression Technology
30 fps @ 1920×1080 (WDR Pro on)
2.8~12 mm, Remote Focus
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
Smart Stream III to Optimize Bandwidth Efficiency
Built-in IR Illuminators, Effective up to 30 Meters
Trend Micro IoT Security
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage

Overview

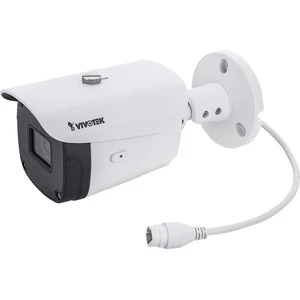

VIVOTEK’s IB9368-HT is a H.265 outdoor bullet network camera equipped with a 2-Megapixel sensor, enabling resolution of 1920×1080 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9368-HT is capable of capturing high-quality imagery in both high contrast and low light environments.

The IB9368-HT deploys a remote focus lens for different user scenarios. IR illuminators are equipped with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9368-HT is encased in robust IP66 and IK10 housing.

By employing VIVOTEK’s Smart Stream III technology and H.265 codec support, the IB9368-HT is able to reduce bandwidth usage by up to 90% while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the everexpanding number of user scenarios in a diversifying surveillance market.

Technical Information

Recording Formats:	HD
HD Recording:	Yes
Night Vision:	Yes
Night Vision Distance:	98.43 ft
Number of IR LEDs:	2

Display & Graphics

Image Sensor Type:	CMOS
Color Supported:	Color
Color Supported:	Monochrome
Effective Camera Resolution:	2 Megapixel

Video

Video Formats:	H.265
Video Formats:	H.264
Video Formats:	MJPEG
Maximum Video Resolution:	1920 x 1080
Maximum Frame Rate:	30 fps

Lens

Lens Type:	Zoom
Minimum Focal Length:	2.80 mm
Maximum Focal Length:	12 mm
Lens Included:	Yes
Optical Zoom:	4.3x

Network & Communication

Connectivity Technology:	Wired
Remote Management:	Yes

Interfaces/Ports

Network (RJ-45):

Yes

Physical Characteristics

Mount Type:	Pole Mount
Mount Type:	Corner Mount
Mount Type:	Junction Box Mount
Form Factor:	Bullet
Product Color:	White
Height:	3.3″
Width:	3.3″
Length:	8.4″
Weight (Approximate):	1.63 lb

Environmental Conditions

Maximum Operating Temperature:

140°F (60°C)

Miscellaneous

Indoor/Outdoor:	Outdoor
Package Contents:	Bullet Network Camera Quick Installation Guide Alignment Sticker Screw Pack Cable Gland
TAA Compliant:	Yes
NDAA Compliant:	Yes
