General Information

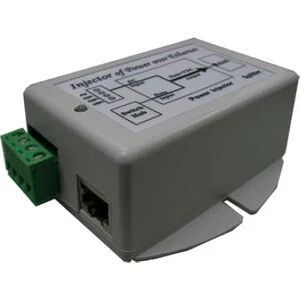

The TP-DCDC-HP Series of DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 56VDC Power Over Ethernet voltage from a 24V or 48V battery system. They have an
integrated POE injector to apply the 24VDC or 56VDC to the CAT5 Ethernet cable. Passive POE and 802.3at models are available. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source.

They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have a power output of up to 35W. The input and output are isolated so the units can accept minus voltage on input and can be wired for positive voltage on the output for those systems which are negative voltage based.

If the remote device does not support power over Ethernet, splitters (POE-SPLT) are available to split the data and DC voltage at the remote device. If the remote device requires reverse voltage the POE-XOVER cable can be used.

Power Description

Input Voltage:	48 V DC
Maximum Output Voltage:	24 V DC
Maximum Output Current:	1.25 A
Maximum Output Power:	30 W

Interfaces/Ports

Input Ports:	10/100/1000Base-T
Output Ports:	10/100/1000Base-T

Physical Characteristics

Height:	1.5″
Width:	3″
Length:	4.9″
Weight (Approximate):	10.58 oz

Miscellaneous

Compatibility:	12V / 24V / 48V Battery Systems Wireless Access Points Client Devices IP Phone Security Camera Systems
Certifications & Standards:	FCC Class B EN55022 Class B UL1950 CSA 22.2 TUV EN60950
