General Information

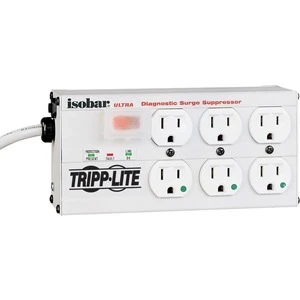

The ISOBAR6ULTRAHG combines high quality components, in a near indestructible all-metal case. Isobar’s unique protection system combines large torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and metal oxide varistors into an exclusive isolated filter bank that removes EMI/RFI interference, even noise generated by other pieces of connected equipment. ISOBAR6ULTRAHG offers 6 high quality hospital-grade outlets arranged in one filter bank to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on. Surge suppression rated at 3330 joules. Widely spaced NEMA 5-15 hospital-grade outlets accommodate up to 3 large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. Includes 15 foot AC line cord with high quality hospital-grade input plug, keyhole mounting tabs and a set of 4 child safety covers.

More from the Manufacturer

Technical Information

Plug/Connector Type:	NEMA 5-15P
Receptacles:	6 x NEMA 5-15R
Protection Type:	Surge

Power Description

Input Voltage:	120 V AC
Output Voltage:	120 V AC
Maximum Line Current:	15 A
Maximum Surge Current:	48 kA
Surge Energy Rating:	3330 J

Controls/Indicators

Status Indicators:

Line OK

Line Fault

Protection Present

Physical Characteristics

Color Family:	Gray
Product Color:	Gray
Power Cord/Cable Length:	15 ft
Height:	2.5″
Width:	7″
Depth:	3.5″

Miscellaneous

Package Contents:	Isobar 6 Outlets 120V Surge Suppressor Instruction manual with warranty information
Additional Information:	Metal end caps are fitted with keyhole mounting tabs for wallmount installation Supports up to 4 large transformer plug accessories without covering remaining outlets Transparent locking switch cover prevents accidental shutoff Rugged all-metal corded strip format with high quality duplex receptacles Multi-component suppression circuits combine torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and metal oxide varistors into an exclusive isolated filter bank that removes EMI/RFI interference, even noise from other pieces of connected equipment
Compatibility:	Ideal for premium protection with hospital-grade receptacles and plug where durability and reliability is required. Not for use where NEC requires hospital-grade receptacles
Certifications & Standards:	UL1449 (let through rating 330V) UL1363 cUL
Country of Origin:	China
