General Information

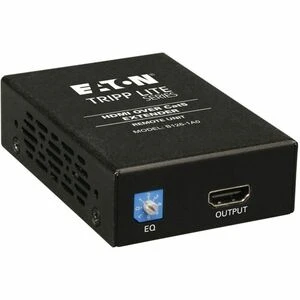

The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite’s N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Technical Information

Connectivity Technology:	Wired
Number of Input Devices Supported:	1
Number of Output Devices Supported:	1
Maximum Operating Distance:	200 ft

Interfaces/Ports

Network (RJ-45):	Yes
HDMI Out:	Yes
Number of Network (RJ-45) Ports:	1
Number of HDMI Outputs:	1

Media & Performance

Media Type Supported:	Twisted Pair
Twisted Pair Cable Standard:	Category 6

Physical Characteristics

Color Family:	Multicolor
Product Color:	Black
Receiver Height:	1″
Receiver Width:	2.50″
Receiver Depth:	3.60″
Form Factor:	Wall Mountable

Miscellaneous

Package Contents:	B126-1A0 Video Console Screwdriver for Adjustment of Equalization Mounting Hardware External Power Supply Owner’s manual
Country of Origin:	Taiwan
TAA Compliant:	Yes
