General Information

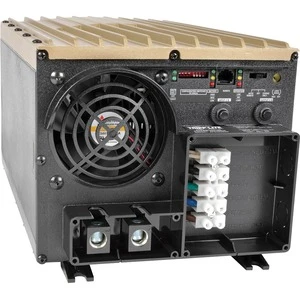

Tripp Lite’s APS3636VR DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or a truck/RV/Industrial inverter. Supplies up to 3600 watts of continuous 120V AC power from any 36V battery. OverPower inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes and DoubleBoost inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 30 amp charging system. In UPS mode, the APS system responds to blackouts and severe voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling – see owner’s manual for recommendations). Passes sine wave utilty or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Built-in Automatic Voltage Regulation (AVR) corrects line power AC brownouts and overvoltages without using battery power during battery charging and UPS standby modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. Included APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status information. Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power transfer voltages.

Technical Information

Plug/Connector Type:	Terminal Block
Plug/Connector Type:	Hardwired
Receptacles:	Hardwired

Power Description

Input Voltage:	120 V AC
Input Voltage:	36 V DC
Output Voltage:	120 V AC
Maximum Frequency:	60 Hz
Peak Power Load:	7200 W
Continuous Power Load:	3600 W
Waveform Type:	Sine Wave

Physical Characteristics

Height:	7.3″
Width:	8.5″
Depth:	16.3″
Weight (Approximate):	55.78 lb

Miscellaneous

Package Contents:	PowerVerter APS3636VR Power Inverter Instruction manual with warranty information Wired Remote Switch with full LED status indicators
Country of Origin:	China
Environmentally Friendly:	Yes
Environmental Compliance:	Restriction of Hazardous Substances (RoHS)
