General Information

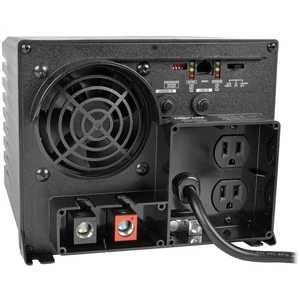

Tripp Lite’s APS750 DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 750 watts of continuous 120V AC power to 2 AC outlets from any 12V battery or automotive DC source. OverPower™ inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes and DoubleBoost™ inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When AC cable is connected to a live wall socket, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 20 amp charging system. Supports an unlimited amount of runtime with any number of user-supplied batteries connected.

Technical Information

Plug/Connector Type:	NEMA 5-15P
Receptacles:	2 x NEMA 5-15R
Protection Type:	Overload Protection

Power Description

Input Voltage:	12 V DC
Input Voltage:	120 V AC
Input Voltage Range:	10 V DC – 15 V DC
Output Voltage:	120 V AC
Maximum Frequency:	60 Hz
Peak Power Load:	1500 W
Continuous Power Load:	750 W
Waveform Type:	Pulse-width Modulated Sine Wave

Physical Characteristics

Color Family:	Black
Product Color:	Black
Height:	7″
Width:	8.8″
Depth:	9″
Length:	12.5″
Weight (Approximate):	17 lb

Miscellaneous

Additional Information:	Frequency control for operating stability AC surge suppression not included Material of construction: Polycarbonate Low voltage transfer to battery power: User configurable to 75V, 85V, 95V & 105V High voltage transfer to battery power: User configurable to 135V, 145V Coated internal circuit boards offer continuous operation in humid environments Advanced 20 amp, 3-stage battery charger and selector switch for gel or wet cell batteries Functions as an extended run UPS system, standalone power source and automotive inverter RJ-45 port allows connection of APS/PowerVerter Remote Switch (manuf# APSRM4) Switch allows user to select between off, auto-invert/remote and charge-only settings Configuration switches to allow the user to select the high and low voltage Mounting slots enable permanent placement of inverter on any horizontal surface AC input cord and auto-transfer to enable battery charging and automatic UPS support for blackouts & brownouts
Package Contents:	PowerVerter APS 750W Inverter/Charger Instruction Manual with Warranty Information
Country of Origin:	China
