General Information

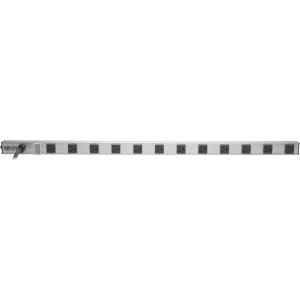

Need to power many pieces of equipment in close proximity to one another but don’t have enough outlets to power them all? Tripp Lite’s PS361220 12-outlet vertical power strip will give you the outlets where you need them, when you need them. The PS361220 contains a 15-ft. (14/3 SJT) cord, 10 standard NEMA 5-15R and 2 commercial-use NEMA 5-20R outlets. Each outlet is spaced 2.64-in. apart (center-to-center) – wide enough for many types of transformers or AC adapters without blocking adjacent outlets. Encased in a rugged, all-metal housing, it comes with mounting clips for either vertical and horizontal mounting, making the PS361220 ideal for a variety of uses in rack-mount, workbench, industrial, office and telecom environments. An illuminated, rocker-style, power switch with a transparent guard prevents accidental turn-offs, while a 20-amp circuit breaker guards against dangerous circuit overloads. To match the decor of most professional settings, it has an extruded aluminum housing with black receptacles.

Technical Information

Plug/Connector Type:	NEMA 5-20P
Receptacles:	10 x NEMA 5-15R
Receptacles:	2 x NEMA 5-20R
Cord Length:	15 ft
Circuit Breaker:	Yes

Power Description

Input Voltage:	120 V AC
Maximum Input Current:	20 A
Maximum Frequency:	60 Hz
Power Rating:	1800 W

Physical Characteristics

Form Factor:	Bench/Cabinet-mountable
Mount Type:	Vertical
Mount Type:	Horizontal
Height:	36″
Width:	1.5″
Depth:	1.3″
Weight (Approximate):	3.79 lb

Miscellaneous

Package Contents:	PS361220 12-Outlets Power Strip Mounting Hardware Instruction Manual
Country of Origin:	China
Environmentally Friendly:	Yes
Environmental Compliance:	Restriction of Hazardous Substances (RoHS)
