General Information

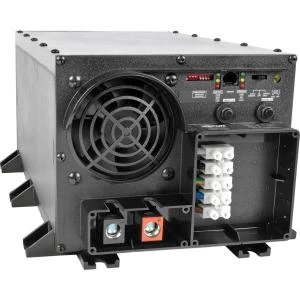

The APS2448UL 2400W PowerVerter APS 48VDC 120V Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools and pumps to portable lighting and computer equipment in heavy-load conditions. With no fumes, fuel or excess noise, it’s an excellent alternative to generator power. And it’s tested to meet UL (U.S.) and CSA (Canada) safety standards. The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as an extended-run UPS, standalone AC power source or vehicle inverter. It delivers 2400W of continuous power, 3600W up to one hour, or 4800W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.Designed for easy installation in RVs, commercial and fleet vehicles, emergency vehicles and construction equipment, the APS2448UL converts stored power from any 48V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 120V AC source, the unit keeps the user-supplied battery charged via a three-stage 15A charging system while simultaneously delivering AC power to connected equipment. When used as a UPS, the APS2448UL responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output.

Technical Information

Plug/Connector Type:	Hardwired
Receptacles:	Hardwired

Power Description

Input Voltage:	48 V DC
Input Voltage Range:	40 V DC – 60 V DC
Output Voltage:	120 V AC
Maximum Frequency:	60 Hz
Peak Power Load:	4800 W
Continuous Power Load:	2400 W
Waveform Type:	Pulse-width Modulated Sine Wave

Miscellaneous

Package Contents:	PowerVerter APS 2400 Watt Power Inverter APS2448 Inverter/Charger Instruction manual with warranty information
System Requirements:	DC INPUT: Requires 48VDC input source capable of delivering 56A for the required duration (when used at full continuous capacity). For automotive applications, professional hardwire installation with 100A minimum battery system fusing is recommended.
Country of Origin:	China
