General Information

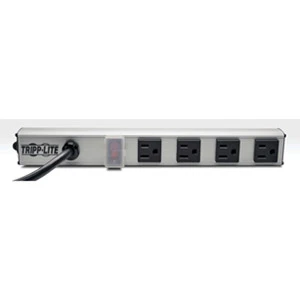

The PS120406 provides a 15-amp, 120v power strip with 4 standard NEMA 5-15R outlets in a rugged, all-metal, mountable housing. It allows for both vertical and horizontal mounting, making it ideal for a variety of uses including office, rackmount, workbench, industrial and telecom applications. With a NEMA 5-15P, 6-ft. power cord, you don’t have to install the PS120406 next to outlets you already have; it can be mounted across the room and deliver reliable service where you need it most. A lighted and covered On/Off switch helps prevent accidental shut-offs, while a 15-amp circuit breaker guards against dangerous circuit overloads. Its sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments.

Technical Information

Plug/Connector Type:	NEMA 5-15P
Receptacles:	4 x NEMA 5-15R
Cord Length:	6 ft
Circuit Breaker:	Yes

Power Description

Input Voltage:	120 V AC
Maximum Input Current:	15 A
Minimum Frequency:	50 Hz
Maximum Frequency:	60 Hz
Power Rating:	1800 W

Physical Characteristics

Form Factor:	Rack-mountable
Mount Type:	Vertical
Mount Type:	Horizontal
Height:	1.3″
Width:	1.6″
Depth:	12″
Weight (Approximate):	1.28 lb

Miscellaneous

Package Contents:	12″ Power Strip with 4-outlets and 6-ft. Cord Mounting Hardware Instruction Manual
Country of Origin:	China
Environmentally Friendly:	Yes
Environmental Compliance:	Restriction of Hazardous Substances (RoHS)
