General Information

Converts 12V DC power into 110V AC power for operating computers and other electronics while traveling or working at remote locations that lack AC power.

Features | Mobile Sine Wave Inverter Charges and Powers Multiple Electronic Devices in Your Vehicle

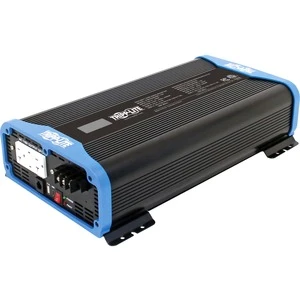

You don’t have to be near an AC power source to keep your mobile devices fully charged and your power tools and small appliances operating. This 1000W mobile inverter converts 12V DC power from your car, utility truck, fleet vehicle, boat or RV’s battery into pure sine wave 110V AC power. Just connect the included battery cables between the PINV1000SW-120’s DC input terminals and the positive and negative terminals on your vehicle’s battery.

AC Outlets Provide Portable Power for Your Mobile Applications
This compact power inverter provides pure sine wave AC output for use at remote locations, such as campgrounds, construction sites and mobile offices. Three NEMA 5-15R outlets provide a continuous output of 1000W and a peak output of 2000W. That’s plenty to operate a variety of appliances and power tools, such as low-power lights, telemetry equipment, smart battery rechargers for small battery-operated power tools, and mobile office equipment.

USB Charging Ports Keep Your Devices at Full Strength
A 5V USB-A port outputs DC power up to 2.1A. A USB-C port outputs 5V/9V/12V fast-charging up to 18W maximum. Both USB ports remain active when the inverter’s on/off switch is set to Off. This allows you to charge your smartphone, tablet, laptop or GPS unit without draining too much power from the vehicle’s battery.

Includes the Latest Safety Features to Protect Your Equipment and Battery
The on/off switch offers one-touch control over all AC outlets. If the power input from the vehicle’s battery drops below 10V or exceeds 16V, the PINV1000SW-120 will automatically shut down. Green and red LEDs indicate normal and improper operation. The temperature-controlled fan system begins cooling automatically when the internal temperature rises to a certain level during extended use. An audible alarm sounds during excessively high/low voltage or fault conditions.

Remote Control Module Allows Power Control from 20 ft. Away
The included PINVSWRM remote control module with 20-foot (6-meter) cable connects to the telephonestyle RJ12 jack on the inverter’s front panel. The module lets you mount the inverter out of sight, such as below your truck cab’s jump seat or inside the glove compartment, and operate it from your vehicle’s dashboard. The green LED confirms the inverter is powered on and operating correctly.

Brackets Included for Permanent Mounting
The durable aluminum housing withstands the rigors of worksites, construction sites, business trips and family vacations. Use the built-in mounting brackets and included hardware to permanently install the inverter in a horizontal position.

Technical Information

Plug/Connector Type:	NEMA 5-15R
Receptacles:	3 x NEMA 5-15R
Protection Type:	Overload Protection
Cord Length:	1.50 ft

Power Description

Input Voltage:	12 V DC
Output Voltage:	120 V AC
Maximum Frequency:	60 Hz
Peak Power Load:	2000 W
Continuous Power Load:	1000 W
Waveform Type:	Pure Sine Wave
Power Source:	Battery

Physical Characteristics

Color Family:	Multicolor
Product Color:	Black
Product Color:	Blue
Height:	4.1″
Width:	14.5″
Depth:	8.3″
Weight (Approximate):	8.60 lb

Miscellaneous

Package Contents:	PINV1000SW-120 1000W LightDuty Compact Power Inverter 2 x DC Battery Cables, 18 in. (45.7 cm) Ground Wire with Clamp PINVSWRM Wired Remote Kit Mounting Hardware Owner’s Manual
Certifications & Standards:	CAN/CSA-C22.2 No. 107.1 (Canada) UL 458 FCC Part 15 Class B (USA)
Environmentally Friendly:	Yes
Environmental Certification:	RoHS
