General Information

Features

Connects Your Computer or Laptop to a USB 2.0 Device up to 164 ft. Away

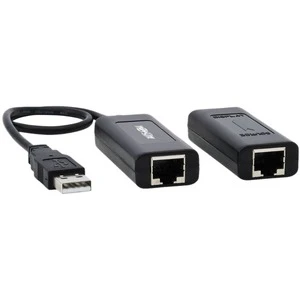

This plug-and-play extender kit is ideal for connecting your home or office computer’s USB-A port to a printer, 1080p webcam, external hard drive or other USB device located up to 164 feet (50 meters) away. The B203-101-POC includes a local transmitter and a remote receiver. It sends USB 2.0 signals over user-supplied Cat5/6 cabling (such as Tripp Lite’s N202-Series Cat6 Ethernet cables).

Built-In Power over Cable Technology Provides Power to Avoid Bulky Power Bricks

PoC powers the receiver over Cat5/6 cable. Green and orange LEDs on both units will light up to indicate they are receiving power and data is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the transmitter and receiver away from AC outlets. Note: if connected to a high-density USB hard drive, the receiver features a USB Micro-B port for plugging a 5V external power supply (sold separately) into an AC outlet.

With Great Distance Comes Great Flexibility

By extending the USB connection beyond the standard 16-foot distance limitation to 164 feet, the B203-101-POC provides workstation flexibility to place your computer and the USB device where they are best suited. This extender kit supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 technology, allowing you to connect legacy devices. No network connectivity is needed.

Built-In USB Cable Offers a Fast, Easy Plug-and-Play Connection

Just connect the transmitter’s USB cable to your computer’s USB-A port, connect a USB 2.0 device to the receiver’s USB-A port, and connect the two units with Cat5/6 cable (sold separately). You don’t need to download any drivers or other software.

Typical Applications

Connect an impact printer or 1080p webcam using existing in-wall Cat5/6 wiring to a computer, laptop or server located in another room
Eliminate excessive cable clutter with the extender kit’s PoC capability
Place the computer or server in a locked cabinet or closet to protect against tampering

System Requirements

Computer, laptop or server with USB-A port
Windows, Mac or Chrome operating system
Cat5/5e/6/6a cabling

Technical Information

Connectivity Technology:	Wired
Number of Input Devices Supported:	1
Number of Output Devices Supported:	1
Maximum Operating Distance:	164 ft

Video

Graphics Modes:	Full HD
Maximum Video Resolution:	1920 x 1080

Interfaces/Ports

Network (RJ-45):	Yes
USB:	Yes
Number of Network (RJ-45) Ports:	2
Number of USB Ports:	3

Media & Performance

Media Type Supported:	Twisted Pair
Twisted Pair Cable Standard:	Category 6

Wireless Specifications

Wireless LAN:

Physical Characteristics

Color Family:	Multicolor
Product Color:	Black
Transmitter Height:	0.59″
Transmitter Width:	1.02″
Transmitter Depth:	2.36″
Receiver Height:	0.59″
Receiver Width:	1.02″
Receiver Depth:	2.36″
Transmitter Weight (Approximate):	2.72 oz
Receiver Weight (Approximate):	2.72 oz

Miscellaneous

Package Contents:	1 x Transmitter Unit 1 x Receiver Unit Owner’s Manual
Country of Origin:	Taiwan
TAA Compliant:	Yes
Environmental Compliance:	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance:	Restriction of Hazardous Substances (RoHS)
