General Information

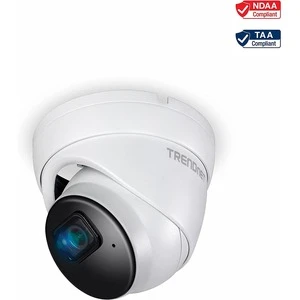

TRENDnet’s Indoor/Outdoor 5MP H.265 PoE IR Fixed Turret Network Camera, model TV-IP1515PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.). This fixed turret network camera delivers year-round surveillance with an IP66 weather rated housing to withstand outdoor environments. Record up to 5MP HD video at 20fps in a space saving H.265 compression format. Easily view live video from the 5MP turret camera on your mobile device using our free Sentinel mobile app, or on your PC with our free View Manager desktop camera video management software.

DEVICE INTERFACE: 10/100Mbps PoE Port; Micro SD Card Slot; Power Jack; Built-in Microphone; Reset Button
NIGHT VISION HD SURVEILLANCE: Powerful 5MP HD video (2592 x 1920) at 20fps and up to 30m (98 ft.) night vision provides 24-hour surveillance. Night vision Infrared LEDs dynamically adjusts the Infrared (IR) LEDs by lowering the IR intensity when objects are near, and increasing IR intensity when objects are farther away
ONE-WAY AUDIO: The 5MP Fixed Turret camera has a built-in microphone for one-way audio
3-AXIS ADJUSTMENT: Manually adjust the pan and tilt angles of this poe camera to find the optimal camera lens position
WIDE DYNAMIC RANGE (WDR): WDR setting improves image quality and focus when a camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible.

VIEW MANAGER SOFTWARE: View live video, recording playback, custom viewing modes and options, and manage TRENDnet cameras with included complimentary software and Free Sentinel iOS® and Android™ mobile apps.
MOTION DETECTION: Create custom motion detection zones to record video and send email notifications when a zone is triggered.
POWER OVER ETHERNET (POE): PoE offers cost savings and the flexibility to install this night vision camera up to 100m (328 ft.) from the PoE source equipment.
NETWORK STORAGE: Record video to a network storage device or to a Micro SD card (up to 256GB not included).
OUTDOOR READY: Built for outdoor environments with an IP66 weather rating and an operating temperature range of -30° – 50° C (-22° – 122° F).
NDAA / TAA compliant (U.S. and Canada only)

More from the Manufacturer

Technical Information

HD Recording:	Yes
Night Vision:	Yes
Night Vision Distance:	98.43 ft
Night Vision Type:	Infrared

Display & Graphics

Image Sensor Type:	CMOS
Color Supported:	Color
Tilt:	0° to 80°
Field of View:	106°
Effective Camera Resolution:	5 Megapixel

Video

Video Formats:	H.265
Video Formats:	H.264
Maximum Video Resolution:	2608 x 1960
Maximum Frame Rate:	30 fps

Lens

Lens Type:	Fixed
Maximum Focal Length:	3.60 mm
Lens Included:	Yes
Maximum Aperture:	f/1.6
Minimum Thermal Focal Length:	0.14″

Network & Communication

Connectivity Technology:	Wired
Remote Management:	Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:	100 V AC
Input Voltage:	240 V AC
Power Source Type:	PoE

Physical Characteristics

Form Factor:	Dome
Product Color:	White
Weight (Approximate):	15.45 oz

Environmental Conditions

Minimum Operating Temperature:	-22°F (-30°C)
Maximum Operating Temperature:	122°F (50°C)
Operating Humidity:	95%

Miscellaneous

Features:	Built-in Microphone
Features:	Wide Dynamic Range
Features:	Day/Night
Features:	Motion Detection
Features:	3D Digital Noise Reduction
Features:	Mirror
Features:	Privacy Masking
Features:	Tamper Detection
Indoor/Outdoor:	Indoor/Outdoor
Package Contents:	TV-IP1515PI Network Camera Weather seal Quick installation guide Camera mounting hardware
Ingress Protection Rating:	IP66
Country of Origin:	Taiwan
TAA Compliant:	Yes
