Built To Meet The Growing Demands Of Guests, Samsung’s He690 Premium Hospitality Displays Introduce An All-in-one Content And Entertainment Center With An Array Of Convenient Features. Through Samsung’s Lynk Reach 4.0 Content Management Solution, Managers Can Deliver Customized Content Geared To Their Guests While Being Able To Streamline Management Of Hundreds Of In-room Displays. Meanwhile, Guests Gain Further Benefits Such As Being Provided With Low-cost, Hassle-free Iptv Service, And Improved Connectivity And Compatibility With Their Personal Devices. Having A Connected Ethernet Bridge And Bluetooth Music Player Completes The Overall Offerings Of He690 Displays, As They Work To Evolve Standard In-room Displays Into Multi-functional Content Centers, Thereby Empowering Guests While Concurrently Helping Managers Realize Improved Operational Efficiency.

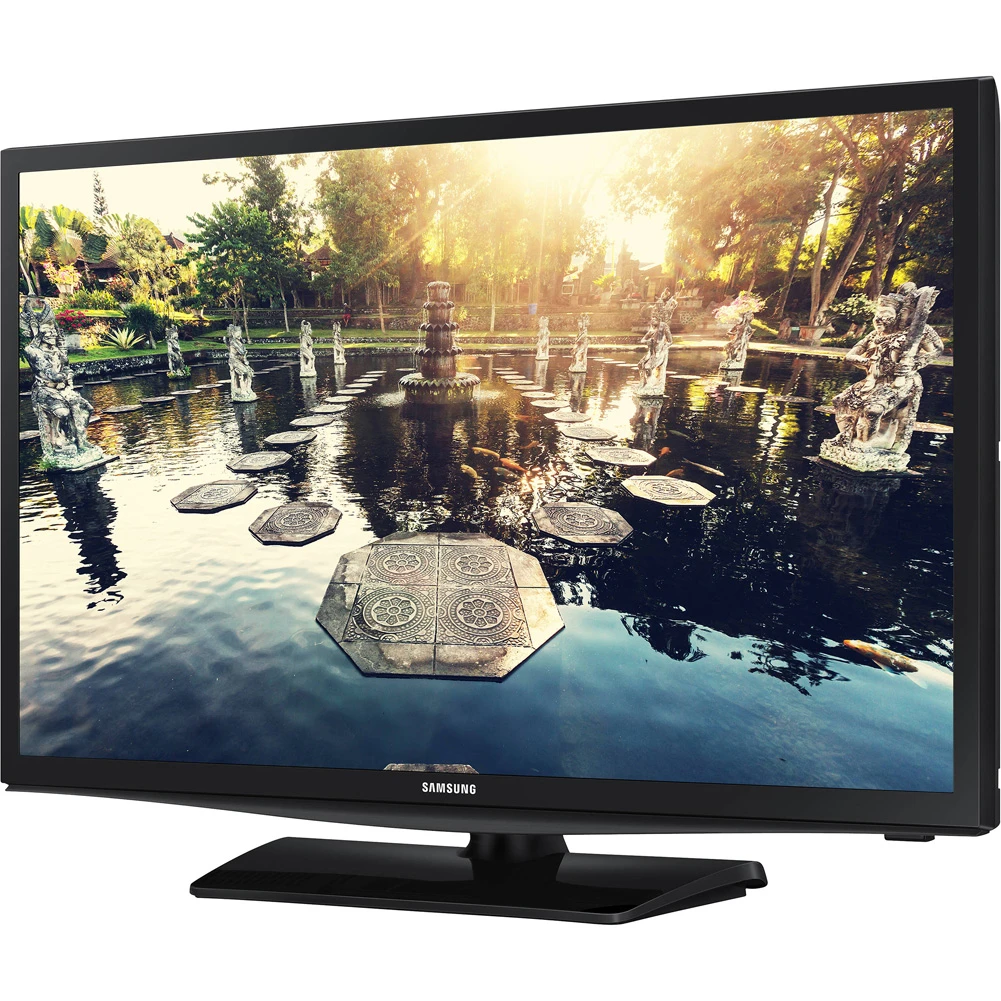

Provide your guests with a welcoming experience with the Samsung NE690AF 24″ Class HD Smart Hospitality LED TV. It lets you set your own welcome message and logo for a customized guest experience. HD resolution provides clear images with compatible content. Two HDMI inputs let you connect your source devices of choice, or enable your guests to plug in their own. The USB port can be used to clone the settings from one TV to another, and your guests can use it to play MPEG4 files from their compatible drive.

Key Features

HD (1366 x 768) Native Resolution
Mega Contrast
Dual Built-In 10W Speakers
Component/Composite Combo, 2 x HDMI In
USB Cloning
Security Mode
Hotel Logo & Customizable Message
Dolby Digital Plus
Remote with Anti-Theft Battery Cover

Samsung Smart View
Enjoy your favorite digital content from any of your DLNA-connected Samsung devices. Samsung Smart View lets you wirelessly access and share content between your Samsung devices, regardless of where you are, and there’s no need for any cables or connected devices. It’s also equipped with cloud technology, so you can upload your favorite content to a central web storage account and access it wherever you are.

ConnectShare
Connect a thumb drive or digital camera, and its user-friendly interface allows access to videos, a music playlist, and pictures via the remote.

Quad-Core Processor
The quad-core processor makes multitasking fast. Browse the web faster and quickly. Hotel personnel can easily download apps to the TV.

Samsung Soundbar Compatible
Samsung Hospitality Displays enable Soundbar compatibility by supporting HDMI-CEC. When you connect the Soundbar to the Samsung Hospitality Display with an HDMI cable, the TV audio settings and menu lock feature are automatically applied, so you don’t have to set up the Soundbar separately. You can also prevent guests from changing the settings. With one single remote, guests can control both the TV and Soundbar simultaneously.

Additional Features

HyperReal picture engine
Mega-Contrast dynamic contrast-ratio technology
Wide Color Enhancer (Plus)
Film Mode
Dolby Digital Plus
Virtual Surround
DTS Codec
Down-firing speaker design
Wall Mount Sound Mode
Apps Panel
Integrated web browser
Mobile device to TV mirroring via DLNA
Voice Guide, Enlarge, and High-Contrast accessibility modes
Digital Clean View
Auto Channel Search
Auto Power Off
Caption (Subtitle)
ConnectShare HDD
Sports Mode
EPG (electronic program guide)
Game Mode
USB HID support
Analog tuner
Samsung LYNK REACH RF modulator compatibility
Home Menu 2015 for hospitality
Auto Source Mode
Power On Mode
Channel Menu Display
Mixed Channel List (ATSC, analog)
My Channel
Energy Saving Mode (BLU Control)
Logo Display with Timer Out Setting (BMP/Movie)
Welcome Message
RJ12/IR Pass-Through
Clock Backup Power Supply
Software Clock
Smoovie Compatibility
Soft AP
Security Mode
S/W EPG (Solution EPG)
Wake on LAN (WOL)
RJP compatibility via Ex-Link port
HDMI ARC

Technical Information

Screen Size Class:	24″
Viewable Screen Size:	24″
Backlight Technology:	Direct LED
Aspect Ratio:	16:9
Interactive Features:	Voice Guidance
Interactive Features:	Voice Control
Features:	Media Player
Features:	Hotel Mode
Features:	Hospitality Browser (H.Browser)
Features:	LYNK REACH
Features:	Web Browser
Features:	Game Mode
Features:	Sport Mode
Features:	Screen Mirroring
Features:	Film Mode
Features:	Auto Program
Features:	Auto Power Off
Features:	Picture-in-Picture
Features:	On/Off Timer
Features:	Alarm Timer
Features:	Energy Saving Mode
Features:	Security Mode
Electronic Program Guide:	Yes
PC Streaming:	Yes
Internet Access:	Yes

Video

Digital Tuner:	ATSC
Video Signal Standard:	HDTV
Maximum Resolution:	1366 x 768

Audio

RMS Output Power:	10 W
Sound System:	Dolby Digital Plus
Sound System:	Virtual Surround
Sound System:	DTS

Network & Communication

Ethernet:	Yes
Wireless LAN:	Yes

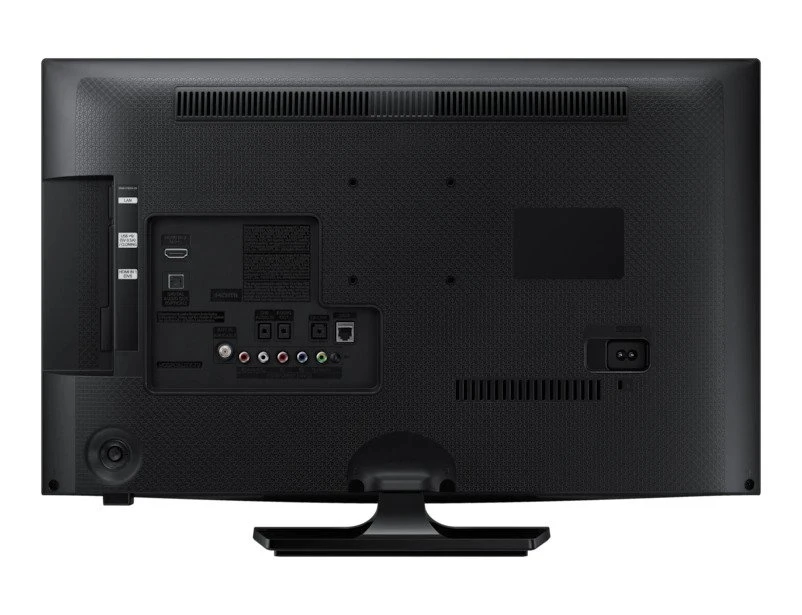

Interfaces/Ports

HDMI:	Yes
Total Number of HDMI Ports:	2
USB:	Yes

Power Description

Input Voltage:	120 V AC
Input Voltage:	230 V AC

Physical Characteristics

Color:	Black
VESA Mount Compatible:	Yes
Height:	13.7″
Width:	22.1″
Depth:	2.6″
Height with Stand:	15.10″
Width with Stand:	22.12″
Depth with Stand:	6.44″
