General Information

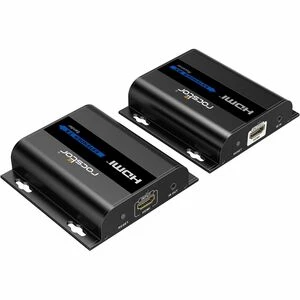

Experience seamless and versatile audiovisual transmission with the Rocstor TrueReach Point to Point 1080P @ 60Hz HDMI & over IP Extender. Engineered to deliver exceptional performance, this advanced extender allows you to extend high-quality HDMI signals over both local and wide area networks. With a transmission distance of up to 394 ft (120 meters), the TrueReach HDMI & over IP Extender ensures flawless, high-definition content delivery.

Immerse yourself in vibrant visuals with support for 1080P resolution at 60Hz with HDR. Whether you’re setting up a home theater, classroom, or digital signage system, the TrueReach HDMI & over IP Extender provides stunning colors, sharp details, and an engaging viewing experience.

The TrueReach HDMI & over IP Extender features IR signal transmission, enabling convenient control of HDMI source devices from the remote display location. With IR pass-through capability, you can effortlessly manage your connected devices without the need for separate control systems or additional equipment.

Built-in lightning, surge, and ESD (electrostatic discharge) protection ensures the safety of your valuable equipment in various electrical environments. With Rocstor’s robust protection technology, your devices are shielded from unpredictable electrical events, offering peace of mind.

The TrueReach HDMI & over IP Extender utilizes the latest V4.0 technology with low latency and low transmission delay. This ensures minimal delay in signal transmission, providing a smooth and synchronized audiovisual experience, whether you’re streaming video content or conducting interactive presentations.

Thanks to its adaptive technology, the Rocstor TrueReach automatically adjusts parameters to optimize display performance, matching different network cables. This intelligent feature guarantees a stable and reliable connection, maintaining the highest level of video quality and signal integrity.

Technical Information

Connectivity Technology:	Wired
Number of Input Devices Supported:	1
Number of Output Devices Supported:	1
Maximum Operating Distance:	393.70 ft

Video

Graphics Modes:	Full HD
Supported Video Modes:	1080i
Supported Video Modes:	1080p
Supported Video Modes:	720p
Supported Video Modes:	480i
Supported Video Modes:	480p
Supported Video Modes:	576i
Supported Video Modes:	576p
Maximum Video Resolution:	1920 x 1080

Interfaces/Ports

Network (RJ-45):	Yes
HDMI In:	Yes
HDMI Out:	Yes
Number of Network (RJ-45) Ports:	2
Number of HDMI Inputs:	1
Number of HDMI Outputs:	1

Media & Performance

Media Type Supported:	Twisted Pair
Twisted Pair Cable Standard:	Category 6

Physical Characteristics

Product Color:	Black
Transmitter Height:	0.94″
Transmitter Width:	3.66″
Transmitter Depth:	3.78″
Receiver Height:	0.94″
Receiver Width:	3.66″
Receiver Depth:	3.78″
Form Factor:	Rack-mountable
Form Factor:	Wall Mountable
Transmitter Weight (Approximate):	4.80 oz
Receiver Weight (Approximate):	4.80 oz

Miscellaneous

Package Contents:	1 x HDMI EXTENDER sender TX 1 x HDMI EXTENDER receiver Rx 1 x User Manual 2 x DC5V/1A Power Adapter 1 x IR Blaster Extension Cable 1 x IR Receiver Extension Cable
Environmentally Friendly:	Yes
Environmental Certification:	RoHS
Environmental Certification:	WEEE
Environmental Certification:	REACH
Country of Origin:	China
TAA Compliant:	No
