General Information

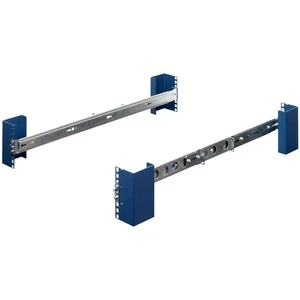

The 1U Cobra 79 Rail for Dell can provide a stable, sturdy and easy-to-install sliding rail solution for Dell-compatible server racks. These slide rails are compatible with standard 19″ EIA-310 server racks, and can work with either 2 post or 4 post models. In terms of server compatibility, the slide rails are designed for the Dell PowerEdge R320, R330, R410, R415, R420, R620, R630, R230, NX300 and NX400. The device is designed to fit in racks using either standard square, round or threaded holes, and feature an adjustable mounting depth between 20 – 32″ (508 – 812.8 mm) in 4 Post and 3 – 6″ (76.2 – 152.4 mm) in 2 Post. This rail kit is not a ball-bearing rail kit. 2-Post and 4-Post Compatibility Unlike the Dell OEM Rail Kit, RackSolutions’ rail kit rack mounts in both 2-Post and 4-Post racks as long as they are 19″ EIA 310 server racks. The rail kit also works with threaded, round, and universal square holes. In 4-Post Racks, the mounting depth is adjustable 20 – 32″ (508 – 812.8 mm).

Product Information

Device Supported:	Server
Maximum Adjustable Depth:	30″
Features:	Adjustable Depth

Physical Characteristics

Depth:	3″
Weight (Approximate):	4.19 lb

Miscellaneous

Package Contents:	Dell R620 Slide Rails Mounting Hardware
Compatibility:	Dell PowerEdge Servers: R620 R420 R320
Assembly Required:	Yes
Country of Origin:	United States
Assembly Description:	Tools Needed & Not Included
TAA Compliant:	Yes
Environmentally Friendly:	Yes
Environmental Compliance:	Restriction of Hazardous Substances (RoHS)
