General Information

Just because your meetings are in small spaces doesn’t mean those meetings aren’t important.

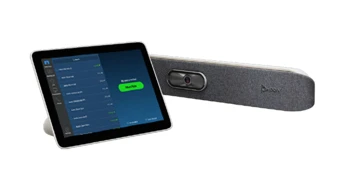

Meet the Poly Studio X30, an all-in-one video bar for huddle and small rooms. It’s radically simple to use with support for leading cloud video services built right in-no PC or Mac required. Voices are crisp and clear, thanks to a beamforming microphone array and acoustic chamber design. Built-in, wireless content sharing lets users share from their devices without the need for cables or pucks. Setup, management, and maintenance are all streamlined, too. Say hello to lower IT costs.

Ideal for rooms of up to six participants
Compact, lightweight design easily fits on top of display
Affordable price delivers excellent huddle room performance without breaking the bank

Technical Information

ITU-T Recommendation:	H.323
ITU-T Recommendation:	SIP
ITU-T Recommendation:	H.235


Maximum Image Resolution:

3840 x 2160

Video

Graphics Modes (Live):	4K UHD
Graphics Modes (Content):	4K UHD
Maximum Video Resolution (Live):	3840 x 2160
Maximum Video Resolution (Content):	3840 x 2160
Maximum Frame Rate:	30 fps
Video Encoding:	H.264
Video Encoding:	H.264 High Profile
Video Encoding:	H.265
Video Encoding:	H.239

Audio

Microphone Form Factor:	Internal
Audio Encoding:	AAC-LD
Audio Encoding:	G.719
Audio Encoding:	G.722.1C
Audio Encoding:	G.722
Audio Encoding:	G.722.1
Audio Encoding:	G.711
Audio Encoding:	G.728
Audio Encoding:	G.729a
Audio Encoding:	Siren 22
Audio Encoding:	Siren 14

Network & Communication

Network Technology:	10/100/1000Base-T
Ethernet Technology:	Gigabit Ethernet

Wireless Specifications

Wireless LAN:

Yes

Interfaces/Ports

HDMI In:	Yes
HDMI Out:	Yes
Video Input:	Yes
Video Output:	Yes
Audio Line In:	Yes
Audio Line Out:	Yes
Network (RJ-45):	Yes
USB:	Yes
Number of Network (RJ-45) Ports:	1
Number of HDMI Inputs:	2
Number of HDMI Outputs:	2
Number of Video In:	1
Number of Video Out:	3
Number of Audio Line In:	7
Number of Audio Line Out:	2
