Watch your business or home
anytime, anywhere

Product Information

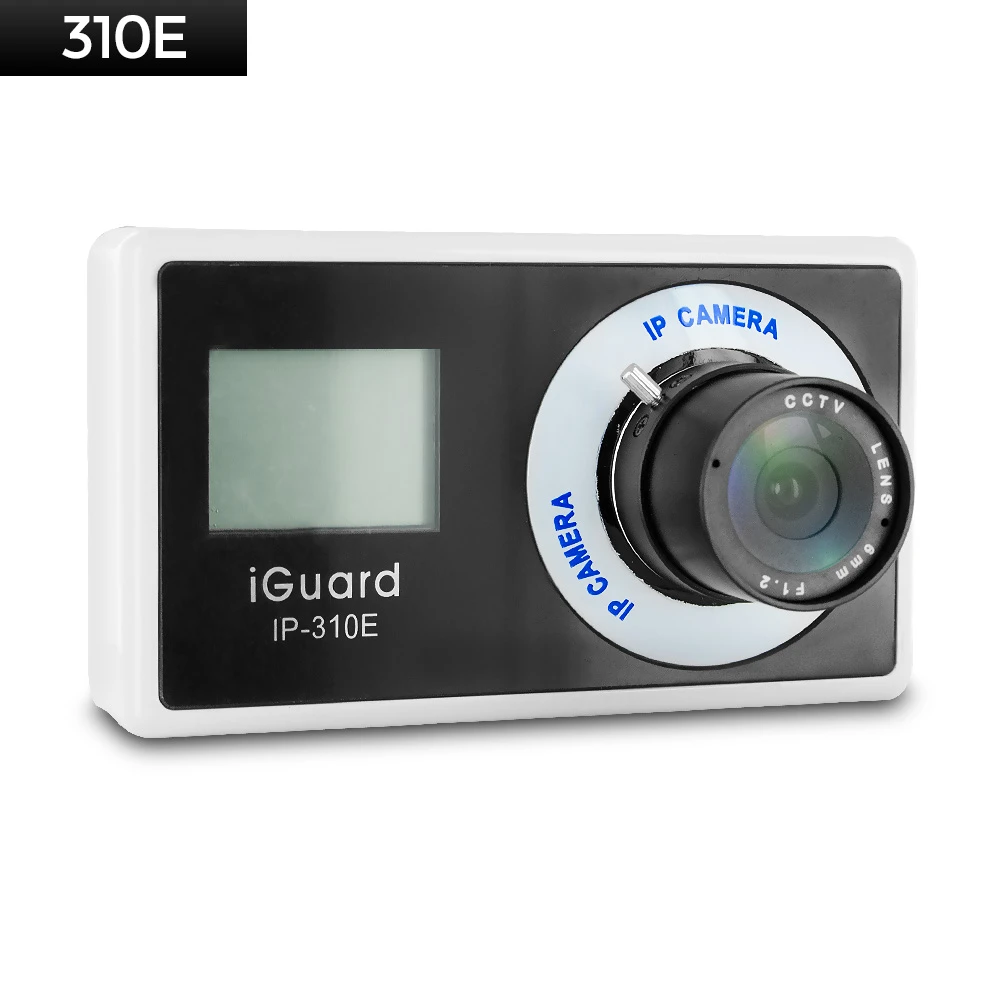

The Micon IP-310E iGuard 310E IP/Network Camera features a 2-port
network video server as small as a deck of cards, but functions as
powerfully as any dedicated computer-based video streaming system. The
iGuard is the only IP camera solution on the market today that has a
built-in expansions port to which a large selection of USB cameras can
be attached. With its upgraded web-video-server, the iGuard IP camera
allows the user to stream video to the Internet through a wired or
wireless network and record images directly on to an attached USB drive
or to the hard-drive on a remote PC. The included iGuardView PC based
client software allows the user to monitor and record multiple cameras
on one PC.

Product Features

Built-in web server with email notification of events,
motion detects, and schedules image recordings
Wi-Fi ready with add-on USB wireless dongle
Web-based remote access using an Java-enabled web browser
10/100 Mbps fast Ethernet connection
Supports audio-enhanced add-on camera
Built-in LCD screen on the iGuard will
display the IP address assigned by a DHCP server on the
network, as well as other host of information
640×480 high resolution color CMOS sensor
Up to 30 fps and 30 simultaneous viewers
Built-in USB port for add-on cameras and for future
expansion
Built-in RS-232 port for add-on sensors
Configure up to 8 user accounts with different access
levels (administrator, operator, and viewer)

Includes

iGuard IP/Network Camera
10-100 Ethernet Cable
iGuard Utility CD/Software
Quick Installation Guide
5.3V DC Adapter

Specifications

Color: Black/White
Sensor: Color CMOS VGA Sensor with
350,000 pixels
Minimum Illumination: [email protected]
Visual Angle: 62-degree horizontal
CPU: 32-bit RISC
Flash Memory: 4 MB
Dynamic Memory: 168 MB
Remote Users: Support for up to 30
User Accounts/Passwords: Up to 8
Network Protocol: HTTP, TCP/IP, UDP,
SMTP, PPPoE, Dynamic DNS, DNS Client, BOOTP, DHCP, FTP, SNMP
Resolution: 640×480, 320×240, 160×120
Frame Rate: Up to 30fps in 320×240
Operating Temperature: 32F to 140F
Operating Humidity: 10% to 90%
Power: USB 5V
Warranty: One Year Limited Manufacturer
Warranty
