General Information

Extend Video Transmission up to 10 Displays

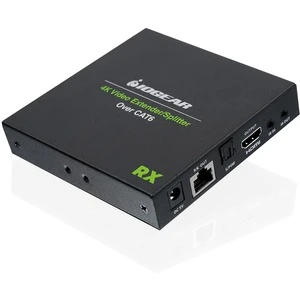

The GVE4K60RX is additional receiver that can be added to the GVE4K60RX (click here for more details about the kit) to allow additional displays to share the same content. Up to nine additional GVE4K60RX receivers can be added to a single GVE4K60RX in cascading fashion, allowing a total of ten displays-a perfect multi-screen digital display solution for hospitality, restaurants, houses of worship, or anywhere multiple displays are needed.

Technical Information

Connectivity Technology:	Wired
Number of Output Devices Supported:	1
Maximum Operating Distance:	230 ft

Video

Graphics Modes:	4K
Maximum Video Resolution:	4096 x 2160

Interfaces/Ports

Network (RJ-45):	Yes
HDMI Out:	Yes
Number of Network (RJ-45) Ports:	2
Number of HDMI Outputs:	1
Remote (IR) Input:	1
Remote (IR) Output:	1

Media & Performance

Media Type Supported:

Twisted Pair

Physical Characteristics

Receiver Height:	0.75″
Receiver Width:	4.13″
Receiver Depth:	4.13″
Receiver Weight (Approximate):	8.80 oz

Miscellaneous

Package Contents:	Extra Receiver for GVE4K60KIT-4K Video Extender over Ethernet 1 x IR Extension Cable 1 x Power Adapter 1 x Mounting Kit 1 x User Guide 1 x Warranty Card
Environmentally Friendly:	Yes
