General Information

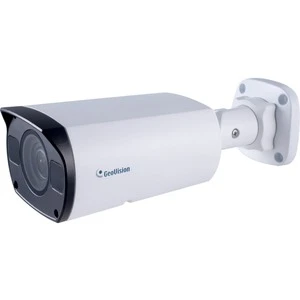

The Bullet IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-TBL8810 adheres to IK10 and P67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Technical Information

Recording Formats:	HD
HD Recording:	Yes
Night Vision Distance:	164.04 ft
Number of IR LEDs:	3

Display & Graphics

Image Sensor Type:	CMOS
Color Supported:	Color
Field of View:	31 ~ 96°
Effective Camera Resolution:	8 Megapixel

Video

Video Formats:	H.265
Video Formats:	H.264
Video Formats:	MJPEG
Maximum Video Resolution:	3840 x 2160
Maximum Frame Rate:	30 fps

Lens

Lens Type:	Varifocal
Minimum Focal Length:	2.80 mm
Maximum Focal Length:	12 mm
Lens Included:	Yes
Lens Mount Type:	F14
Maximum Aperture:	f/1.6
Optical Zoom:	4.3x

Exposure

Shortest Shutter Speed:	1/100000 Second
Longest Shutter Speed:	1/12 Second

Network & Communication

Connectivity Technology:	Wired
Remote Management:	Yes

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:	Vehicle Mount
Mount Type:	Corner Mount
Mount Type:	Wall Mount
Mount Type:	Bracket Mount
Mount Type:	Pole Mount
Form Factor:	Bullet
Durability:	Vandal Resistant
Durability:	Water Proof
Weight (Approximate):	2.20 lb

Environmental Conditions

Minimum Operating Temperature:	-22°F (-30°C)
Maximum Operating Temperature:	140°F (60°C)
Operating Humidity:	95%

Miscellaneous

Features:	Wide Dynamic Range
Features:	Built-in IR LED
Features:	Day/Night
Features:	Ingress Protection
Features:	SD Card Local Storage
Features:	Motion Detection
Features:	Tampering Alarm
Features:	Audio Detection
Features:	Audio Compression
Features:	Cross Line Detection
Features:	HTTPS Encryption
Indoor/Outdoor:	Outdoor
Package Contents:	GV-TBL8810 AI 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera Waterproof Rubber Set Screw Kit Drill Template Paster Download Guide Warranty Card
Impact Protection Rating:	IK10
Ingress Protection Rating:	IP67
Environmentally Friendly:	Yes
Environmental Certification:	RoHS
Country of Origin:	Taiwan
