General Information

AI Deep-Learning IP Camera

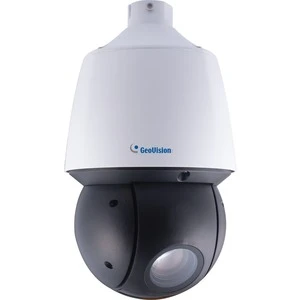

GV-SD4825-IR is an outdoor network PTZ camera that offers 25x optical zoom and unlimited digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 2688 x 1520 at 30 fps. In low-light environments, night vision is enhanced with its high-power LEDs, which allow up to 100 m (330 ft) effective IR distance. The camera can process scenes with contrasting intensity of lights and produce clear image using the built-in WDR Pro. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It also adheres to IP67 and IK10 standards.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. GV-SD4825-IR supports AI perimeter protection, people flow counting, auto tracking, motion detection, audio detection and more.

Technical Information

HD Recording:	Yes
Night Vision:	Yes
Night Vision Distance:	328.08 ft
Night Vision Type:	Infrared
Number of IR LEDs:	4

Display & Graphics

Image Sensor Type:	CMOS
Color Supported:	Color
Field of View:	52.20° ~ 2.74°
Effective Camera Resolution:	4 Megapixel

Video

Video Formats:	H.265
Video Formats:	H.264
Video Formats:	MJPEG
Maximum Video Resolution:	2688 x 1520
Maximum Frame Rate:	30 fps
Video Signal Format:	NTSC
Video Signal Format:	PAL

Lens

Lens Type:	Varifocal
Minimum Focal Length:	4.80 mm
Maximum Focal Length:	120 mm
Lens Included:	Yes
Maximum Aperture:	f/1.5
Optical Zoom:	25x

Exposure

Shortest Shutter Speed:	1/100000 Second
Longest Shutter Speed:	1 Second

Network & Communication

Connectivity Technology:	Wired
Remote Management:	Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:	Straight Tube Mount
Mount Type:	Junction Box Mount
Mount Type:	Swan Neck Mount
Mount Type:	Wall Mount
Mount Type:	Pendant Mount
Mount Type:	Corner Mount
Mount Type:	Pole Mount
Mount Type:	Bracket Mount
Form Factor:	Dome
Durability:	Vandal Resistant
Diameter:	6.5″
Weight (Approximate):	6.72 lb

Environmental Conditions

Minimum Operating Temperature:	-40°F (-40°C)
Maximum Operating Temperature:	158°F (70°C)
Operating Humidity:	90%

Miscellaneous

Features:	Wide Dynamic Range
Features:	Built-in IR LED
Features:	Day/Night
Features:	Removable IR Cut-off Filter
Features:	Ingress Protection
Features:	SD Card Local Storage
Features:	PTZ
Features:	Cross Line Detection
Features:	Auto Tracking
Features:	Face Detection
Features:	3D Digital Noise Reduction
Features:	Motion Detection
Features:	Privacy Masking
Features:	Automatic White Balance
Features:	Auto Gain Control
Features:	Tampering Alarm
Features:	Audio Detection
Features:	Audio Compression
Features:	Built-in OSD Function
Indoor/Outdoor:	Outdoor
Package Contents:	AI 4MP 25x Zoom H.265 Super Low Lux WDR Pro Outdoor IR IP Speed Dome Torx Wrench Waterproof Rubber Set M4 Hex Key Waterproof Guidelines Download Guide
Impact Protection Rating:	IK10
Ingress Protection Rating:	IP67
Environmentally Friendly:	Yes
