General Information

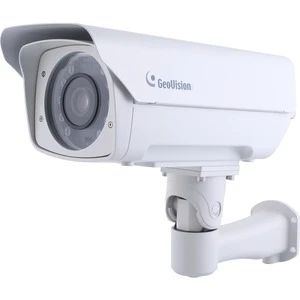

Deep-Learning LPR Camera

GV-LPR2800-DL is capable of recognizing license plate numbers with its built-in deep learning LPR processor. GV-LPR2800-DL can compare captured license plates either with its on-the-edge standalone database, or the database stored at GV-ASManager, an access control system. When there is a match, GV-LPR2800-DL can grant access for the vehicle by opening a gate or barrier.

GV-LPR2800-DL is a 2 MP color network camera designed for recognition of non-reflective license plates on vehicles traveling at up to 100 km/h (62 mph). With its multiple high-power LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and capture clear license plate images for single- or dual-lane scenarios under low-light conditions. It adheres to IP68 and IK10 standards and is able to operate within a temperature range of -40°C (-40°F) to 50°C (122°F).

Technical Information

Recording Formats:	Full HD
HD Recording:	Yes
Night Vision:	Yes
Night Vision Distance:	98.43 ft
Night Vision Type:	Infrared
Number of IR LEDs:	10

Display & Graphics

Image Sensor Type:	CMOS
Color Supported:	Color
Field of View:	50.9°~7.6°
Effective Camera Resolution:	2 Megapixel

Video

Video Formats:	H.265
Video Formats:	H.264
Video Formats:	MJPEG
Maximum Video Resolution:	1920 x 1080
Maximum Frame Rate:	60 fps

Lens

Lens Type:	Varifocal
Minimum Focal Length:	5 mm
Maximum Focal Length:	50 mm
Lens Included:	Yes
Lens Mount Type:	CS-Mount
Maximum Aperture:	f/1.6
Optical Zoom:	10x

Exposure

Shortest Shutter Speed:	1/16000 Second
Longest Shutter Speed:	1/120 Second

Network & Communication

Connectivity Technology:	Wired
Remote Management:	Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:

12 V DC

Physical Characteristics

Mount Type:	Corner Mount
Mount Type:	Pole Mount
Form Factor:	Box
Durability:	Vandal Resistant
Weight (Approximate):	9.57 lb

Environmental Conditions

Minimum Operating Temperature:	-40°F (-40°C)
Maximum Operating Temperature:	122°F (50°C)
Operating Humidity:	90%

Miscellaneous

Features:	Day/Night
Features:	Removable IR Cut-off Filter
Features:	Wide Dynamic Range
Features:	SD Card Local Storage
Features:	Built-in Heater
Features:	Built-in Fan
Features:	Defog
Features:	Motion Detection
Features:	Privacy Masking
Features:	White Balance
Features:	Back Light Compensation (BLC)
Features:	Audio Compression
Package Contents:	Starlight 2 MP H.265 Super Low Lux WDR Pro LPR Box IP Camera Sun Shield Cover 2 x Sun Shield Cover Short Screw 4 x Screw Anchor 4 x 1/4″-10 Screw (32 mm) 2 x M4 Screw (5 mm) 4 x Washer Hex Wrench Silica Gel Bag Adhesive Tape for Silica Gel Bag Micro SD card (Already Inserted and Formatted) Installation Guide Download Guide Warranty Card
Impact Protection Rating:	IK10
Ingress Protection Rating:	IP68
Environmentally Friendly:	Yes
