General Information

AI Deep-Learning IP Camera

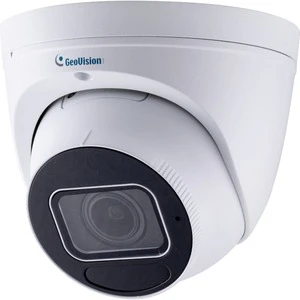

The Eyeball Dome IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-EBD8813 adheres to IK10 and IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Technical Information

Recording Formats:	4K
HD Recording:	Yes
Night Vision:	Yes
Night Vision Distance:	131.23 ft
Night Vision Type:	Infrared
Number of IR LEDs:	2

Display & Graphics

Image Sensor Type:	CMOS
Color Supported:	Color
Field of View:	107°~ 29°
Effective Camera Resolution:	8 Megapixel

Video

Video Formats:	H.265
Video Formats:	H.264
Video Formats:	MJPEG
Maximum Video Resolution:	3840 x 2160
Maximum Frame Rate:	30 fps

Lens

Lens Type:	Varifocal
Minimum Focal Length:	2.80 mm
Maximum Focal Length:	12 mm
Lens Included:	Yes
Lens Mount Type:	Ø12
Maximum Aperture:	f/1.6
Optical Zoom:	4.3x

Exposure

Shortest Shutter Speed:	1/100000 Second
Longest Shutter Speed:	1 Second

Network & Communication

Connectivity Technology:	Wired
Remote Management:	Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:	12 V DC
Power Source Type:	DC

Physical Characteristics

Mount Type:	Pendant Mount
Mount Type:	Wall Mount
Mount Type:	Junction Box Mount
Mount Type:	Corner Mount
Mount Type:	Pole Mount
Mount Type:	Bracket Mount
Form Factor:	Eyeball
Durability:	Vandal Resistant
Diameter:	5.1″
Weight (Approximate):	1.48 lb

Environmental Conditions

Minimum Operating Temperature:	-22°F (-30°C)
Maximum Operating Temperature:	140°F (60°C)
Operating Humidity:	95%

Miscellaneous

Features:	Built-in Microphone
Features:	SD Card Local Storage
Features:	Ingress Protection
Features:	Audio Compression
Features:	Day/Night
Features:	Wide Dynamic Range
Features:	Auto Gain Control
Features:	Face Detection
Features:	Audio Detection
Features:	Motion Detection
Indoor/Outdoor:	Outdoor
Package Contents:	GV-EBD8813 IR Eyeball Dome Waterproof Rubber Set Screw Kit Drill Template Paster Download Guide
Impact Protection Rating:	IK10
Ingress Protection Rating:	IP67
Environmentally Friendly:	Yes
