General Information

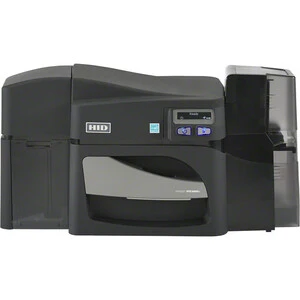

With the FARGO® DTC4500e, you get professional quality, full-color credentials. Designed for medium-to-large sized organizations, schools, and government institutions looking for reliable, long-term solutions. HID Global’s professional-grade DTC4500e card printer/encoder withstands the daily demands of high-volume printing. Additional security features – such as password protection and data decryption, locking dual-card hoppers for managing different card stocks, and optional holographic or fluorescent (UV) overlaminates that dramatically increase card durability – also make this the ideal choice for organizations in need of advanced card protection and performance.

Technical Information

Recommended Use:	Card Print
Print Color Capability:	Color
Maximum Mono Print Speed:	6 Second
Maximum Color Print Speed:	16 Second
Maximum Print Resolution (dpi):	300
Maximum Print Width:	2.11″
Application/Usage:	Desktop

Memory

Standard Memory:

32 MB

Interfaces/Ports

USB:

Yes

Network & Communication

Ethernet:	Yes
Ethernet Technology:	Fast Ethernet

Display & Graphics

Display Screen:	Yes
Display Screen Type:	LCD

Media Types & Handling

Media Type:	Adhesive Backed Card
Media Type:	PVC Card
Media Type:	Polyester Card
Media Type:	Optical Media Card
Media Size:	2.13″ x 3.38″ – CR-80 Card
Media Size:	2.06″ x 3.31″ – CR79 Card
Media Handling:	1 x Input Hopper – 200 Card Capacity
Media Handling:	1 x Output Hopper – 100 Card Capacity
Media Handling:	1 x Reject Hopper – 100 Card Capacity
Media Load Type:	Auto Feed
Media Thickness:	40 mil

Power Description

Power Source:	AC Supply
Input Voltage:	110 V AC
Input Voltage:	220 V AC

Physical Characteristics

Height:	9.8″
Width:	18.7″
Depth:	9.2″
Weight (Approximate):	11 lb

Miscellaneous

Package Contents:	DTC4500E ID Card Printer / Encoder Dual Sided Software CD
Platform Supported:	PC
Platform Supported:	Mac
Certifications & Standards:	UL 60950-2 CSA C22.2 (60950-07) CE EMC FCC Class A CE (EN 55022 Class A, EN 55024) CCC BSMI KC
Energy Star:	Yes
Environmentally Friendly:	Yes
