General Information

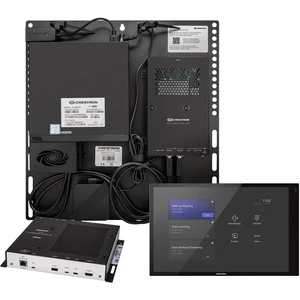

The Crestron Flex UC-CX100-T-WM system provides a customizable conference room solution for use with the Microsoft Teams Rooms intelligent communications platform. It supports single or dual video displays and features a 10.1 in. wall mount touch screen (TSW-1070-B-S-T-V) and UC Bracket Assembly (UC-BRKT-260-P-T-ASSY).

Native Microsoft Teams® Rooms Experience
The UC-CX100-T-WM system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility, whether implementing a cloud based Microsoft Teams Rooms deployment, on-premises Skype® for Business software, or a hybrid of the two.

Custom Room Integration
The UC-CX100-T-WM system provides the essential components needed to design a fully custom video conferencing space using your choice of display devices, cameras, speakers, microphones, and other AV equipment. Any Microsoft Teams software compliant USB camera and USB audio conferencing interface (or speakerphone) may be used.

Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® wall mount touch screen (TSW-1070-B-S-T-V) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Simplified Deployment
The UC Bracket Assembly (UC-BRKT-260-P-T-ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron’s direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.

Wall Mount Options
Using the bracket provided, the TSW-1070 is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.

Crestron Control System Integration
The UC-CX100-T-WM can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.

Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The UC Presentation Transmitter (UC-PR) switches to the connected laptop’s UC platform and returns to the native Microsoft Teams Rooms platform when disconnected.

Enterprise-Grade Security
Crestron Flex is an enterprise-grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Network & Communication

Network Technology:	10/100/1000Base-T
Ethernet Technology:	Gigabit Ethernet

Interfaces/Ports

HDMI In:	Yes
Network (RJ-45):	Yes
USB:	Yes
Number of Network (RJ-45) Ports:	1
Number of HDMI Inputs:	1

Physical Characteristics

Form Factor:

Wall Mountable

Miscellaneous

Package Contents:

TSW-1070-B-S: 10.1 in. (257 mm) wall mount touch screen, black
UC-PR: UC Presentation Transmitter
CBL-4K-DP-HD-6: Active Converter Cable, DisplayPort™ to HDMI, 18 Gbps, 6 ft (1.8 m)
3 x Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m): CBL-CAT5E-7
CBL-HD-6: HDMI Interface Cable, 6 ft (1.8 m)
DM-CBL-ULTRA-PC-20: Ethernet LAN cable, CAT6a, RJ45-to-RJ45, blue, 20 ft (6.1 m)
ADPT-USB-ENET: USB-to-Ethernet Adapter
UC Engine: ASUS Mini PC with Zoom Rooms video
HD-CONV-USB-260: CAT5 to USB 3.0 converter for content ingest
Mounting hardware
EDID Passthroughs: (2) HDMI Female-to-Male
