General Information

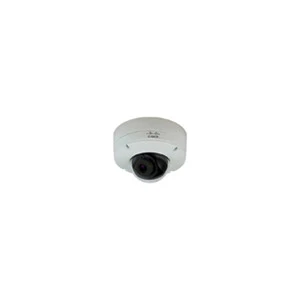

The Cisco® Video Surveillance 7030 IP Camera is an outdoor, high-definition, full-functioned video endpoint with industry-leading image quality and processing power. The camera is capable of a 2560 x 1920 resolution while optimizing network utilization with either H.264 or MJPEG compression. Contact closures allow integration with access control systems. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.

Display & Graphics

Image Sensor Type:	CMOS
Image Sensor Size:	1/2.5″
White Balance Modes:	AWB
Color Supported:	Color
Field of View:	26.69° to 111°

Video

Video Formats:	H.264
Video Formats:	MJPEG
Maximum Video Resolution:	2560 x 1920
Maximum Frame Rate:	30 fps
Video Signal Format:	NTSC
Video Signal Format:	PAL

Exposure

Shortest Shutter Speed:	1/32000 Second
Longest Shutter Speed:	1/5 Second
Exposure Control:	Auto

Network & Communication

Connectivity Technology:	Wired
Ethernet:	Yes
Ethernet Technology:	Fast Ethernet
Protocols:	TCP/IP
Protocols:	DHCP
Protocols:	HTTP
Protocols:	HTTPS
Protocols:	NTP
Protocols:	RTP
Protocols:	RTSP
Protocols:	SMTP
Protocols:	SSL/TLS
Protocols:	SRTP
Protocols:	SNMP
Protocols:	SSH
Protocols:	DSCP
Protocols:	QoS

Controls/Indicators

Status Indicators:

LEDs: Power and Activity

Interfaces/Ports

Network (RJ-45):	Yes
Audio Line In:	Yes
Audio Line Out:	Yes

Power Description

Maximum Power Consumption:

7.60 W

Physical Characteristics

Form Factor:	Dome
Height:	4.5″
Diameter:	6.9″
Weight (Approximate):	3.20 lb

Miscellaneous

Features:	SD Card Local Storage
Features:	Dual Stream
Features:	Day/Night
Indoor/Outdoor:	Outdoor
Package Contents:	Video Surveillance 7030 IP Camera Installation Template and Alignment Sticker Bushing and Connectors L-type Hex Wrench Screws and Nuts Desiccant Pack Documentation Reference Card Regulatory Documentation
Certifications & Standards:	CISPR22 Class B ICES-003 EN55022 EN55024 EN61000-3-2/-3-3 Class A VCCI Class B KN22 Class B KN24 UL60950-1 2nd edition CSA22.2-No.60950-1 IEC/EN60950-1 2nd edition IEC/EN60825 IP66
Ingress Protection Rating:	IP66
Security Features:	Two levels of user access with password protection
Platform Supported:	PC
