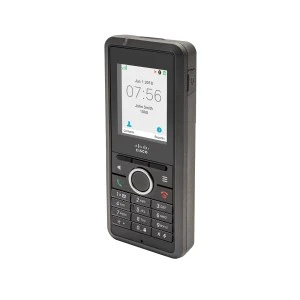

Cisco IP DECT 6823, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, North America Power Adapter

Cisco IP DECT Phone 6800 Series Product Overview

The Cisco IP DECT 6823 and Cisco IP DECT 6825 Handsets are designed for use with the Cisco IP DECT DBS-110 Single-Cell Base Station, Cisco IP DECT DBS-210 Multi-Cell Base Station and Cisco IP DECT Phone RPT-110 Repeater. Together, these products enable the convenience of a mobile DECT solution for Voice-over-IP (VoIP) service. The Cisco IP DECT 6800 Series supports many phone numbers and handsets in a system that can grow from a small store front to cover the largest locations by adding more base stations and repeaters to the network.

Installing the system is straightforward in most locations: please consult the deployment guide, which offers best practices for a successful deployment. Each handset comes with a site survey tool that provides a graphical green, yellow or red indicator of signal strength throughout the workplace. Base stations and repeaters may be wall or surface mounted with an optional mounting kit or set up to stand on a table or shelf with an footstand included in each gift box. Each handset supports one or two lines and systems may be installed to enable a few, dozens or hundreds of handsets.

The 6823 and 6825 handsets have a sleek, comfortable design that clips to a belt or fits easily into a user’s pocket as they move about the workplace. The high resolution, graphical color display provides an intuitive user experience: calls may be answered quickly and features such as transfer, conference and hold may be activated with confidence. Each handset supports wide band audio, long talk time in an attractively priced, high performance system. There is also a ruggedized version of the 6825 that is IP65 rated and designed to work well in dusty or moist environments.

The 6825 offers these advantages that are not provided by the 6823:

A high resolution display
Backlit keypad keys
Bluetooth LE 4.1 for headsets
An emergency button for inter-network notifications

Note: Not all call control systems support single cell and multi-cell. Check with your call control provider about whether they support the different deployment models offered in this data sheet.

An affordable way to purchase hardware

Cisco Webex Hardware as a Service provides a new way to purchase hardware with a simple, scalable and flexible way to pay. Stay up to date with the latest models of IP Phones and Webex Devices to enhance collaboration and create workspaces for the future. And get ready for all the power of Cisco’s unified cloud platform! Learn more about Webex Hardware as a Service and the devices available.

Cisco IP DECT DBS-110 Single-Cell Base Station, DBS-210 Multi-Cell Base Station and RPT-110 Repeater

The Cisco IP DECT DBS-110 Single-Cell Base Station allows up to 30 SIP registrations per unit and up to 2 base stations and 12 repeaters per system. At its maximum size a DBS-110 system supports 20 concurrent narrowband or 10 concurrent wideband calls.

The Cisco IP DECT DBS-210 Multi-Cell Base Station may be installed as a single cell solution that can grow up to a large system with 254 integrated base stations that supports up to 1000 SIP registrations and 2000 calls.

The Cisco IP DECT RPT-110 Repeater extends the connectivity range of handsets registered to the Base Stations. Each Base Station and Repeater has a signal radius of 50 meters (164 feet). The Deployment Guide provides more detail on how combinations of Base Stations and Repeaters may be installed to satisfy different signaling coverage scenarios.

The DBS-110 Single-Cell Base Station, DBS-210 Multi-Cell Base Station and RPT-110 Repeater are supported in the follow frequency ranges:
