General Information

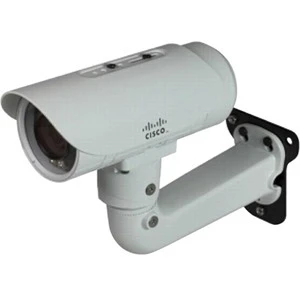

The Cisco® Video Surveillance 6400E IP Camera is an outdoor, high-definition, full-functioning video endpoint with an integrated infrared illuminator and industry-leading image quality and processing power. The camera is capable of full 1080p resolution at 30 frames per second (fps) while optimizing network usage with either H.264 or MJPEG compression. Contact closures and two-way audio allow integration with microphones, speakers, and access control systems. With its open, standards-based design, the camera, shown in Figure 1, provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.

Display & Graphics

Image Sensor Type:	CMOS
Image Sensor Size:	1/2.7″
White Balance Modes:	AWB
Color Supported:	Color
Color Supported:	Monochrome
Field of View:	21.6° to 109.46°
Effective Camera Resolution:	2.1 Megapixel

Video

Video Formats:	H.264
Video Formats:	MJPEG
Maximum Video Resolution:	1920 x 1080
Maximum Frame Rate:	30 fps
Video Signal Format:	NTSC

Lens

Lens Type:	Zoom
Minimum Focal Length:	3.60 mm
Maximum Focal Length:	9 mm
Lens Included:	Yes
Optical Zoom:	2.5x

Exposure

Shortest Shutter Speed:	1/32000 Second
Longest Shutter Speed:	1/5 Second
Exposure Control:	Auto

Network & Communication

Connectivity Technology:	Wired
Ethernet:	Yes
Ethernet Technology:	Fast Ethernet
Protocols:	SNMP
Protocols:	SSH
Protocols:	DSCP
Protocols:	COS
Protocols:	DHCP
Protocols:	HTTP
Protocols:	HTTPS
Protocols:	NTP
Protocols:	RTP
Protocols:	RTSP
Protocols:	SMTP
Protocols:	SSL/TLS
Protocols:	TCP/IP

Interfaces/Ports

Network (RJ-45):	Yes
Audio Line In:	Yes
Audio Line Out:	Yes

Power Description

Maximum Power Consumption:

12.50 W

Physical Characteristics

Form Factor:	Bullet
Depth:	3.2″
Length:	7.8″
Weight (Approximate):	2.86 lb

Miscellaneous

Features:	Day/Night
Features:	Privacy Masking
Features:	SD Card Local Storage
Features:	Tamper Detection
Indoor/Outdoor:	Outdoor
Package Contents:	Video Surveillance 6400E IP Camera Mounting Arm and Bracket Installation Template Documentation Reference Card Regulatory Documentation
System Requirements:	Browser: Internet Explorer 8.0 or Later
Certifications & Standards:	CISPR22 Class B ICES-003 EN55022 EN55024 EN61000-3-2/-3-3 Class A VCCI Class B KN22 Class B KN24 UL60950-1 2nd edition CSA22.2-No.60950-1 IEC/EN60950-1 2nd edition IEC/EN60825 IP67 IK10
Impact Protection Rating:	IK10
Ingress Protection Rating:	IP67
Security Features:	Support for IEEE 802.1X Authentication
