General Information

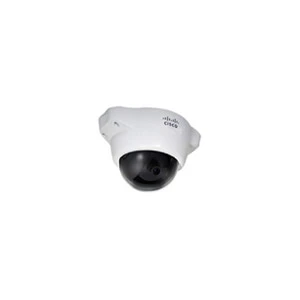

The Cisco® Video Surveillance 3421V IP Camera is a high-definition video endpoint with industry-leading image quality and processing power. The camera is capable of resolutions up to 1280 x 800 at 30 frames per second (fps) while optimizing network usage with either H.264 or MJPEG compression. With its open, standards-based design, the camera provides an ideal platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.

Display & Graphics

Image Sensor Type:	CMOS
Image Sensor Size:	1/4″
White Balance Modes:	AWB
Color Supported:	Color
Field of View:	15.08° to 72.85°
Effective Camera Resolution:	1 Megapixel

Video

Video Formats:	MJPEG
Video Formats:	H.264
Maximum Video Resolution:	1280 x 800
Maximum Frame Rate:	30 fps
Video Signal Format:	NTSC

Lens

Lens Type:	Zoom
Minimum Focal Length:	3.30 mm
Maximum Focal Length:	12 mm
Lens Included:	Yes
Optical Zoom:	3.6x

Exposure

Exposure Control:

Auto

Network & Communication

Connectivity Technology:	Wired
Ethernet:	Yes
Ethernet Technology:	Fast Ethernet
Protocols:	DHCP
Protocols:	HTTP
Protocols:	HTTPS
Protocols:	NTP
Protocols:	RTSP
Protocols:	SMTP
Protocols:	SSL/TLS
Protocols:	TCP/IP
Protocols:	SRTP
Protocols:	SNMP
Protocols:	SSH
Protocols:	DSCP
Protocols:	COS
Protocols:	RTP

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Maximum Power Consumption:

3.12 W

Physical Characteristics

Form Factor:	Dome
Height:	4.7″
Width:	6.1″
Length:	4″
Weight (Approximate):	2.28 lb

Miscellaneous

Features:	Privacy Masking
Features:	SD Card Local Storage
Features:	Dual Stream
Indoor/Outdoor:	Indoor
Package Contents:	Video Surveillance 1-MP IP Indoor Dome Camera Installation Template and Alignment Sticker Screwdriver Screws and Anchors Documentation Reference Card Regulatory Documentation
Certifications & Standards:	UL60950-1 2nd edition CSA22.2-No.60950-1 IEC/EN60950-1 2ndedition IEC/EN60825 CISPR22 Class B ICES-003 EN55022 EN55024 EN61000-3-2/-3-3 Class A VCCI Class B KN22 Class B KN24
Security Features:	IEEE 802.1X Authentication
