General Information

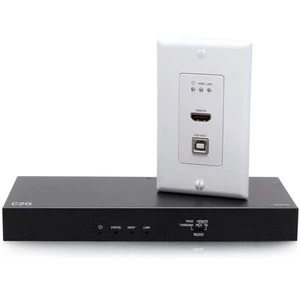

The HDMI HDBaseT + USB-B to A and RS232 over Cat Extender Single Gang Wall Plate Transmitter to Box Receiver – 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must also be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms, classrooms, lecture halls, and many other installation needs far beyond the length limitations of standard HDMI cabling.

This HDBaseT kit extends HDMI and high speed USB 2.0 over a single Cat5e, Cat6, or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI up to 130 feet using a Cat6a cable. Extend USB 2.0 pass through up to 230ft, connecting up to 4 USB devices to the receiver.

This kit is HDCP 2.2 compliant, making sure that the connection from the source is secure. Multi-channel audio formats are supported, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X. High speed USB 2.0 pass-through supports up to 230ft for KVM control of devices such as USB cameras, keyboards, mice, etc. With one-way Power over HDBaseT (PoH) support, the transmitter gets its power from the receiver, so no additional power adapter is required, allowing for greater installation flexibility. Advanced users can control RS232 pass-through to pass RS232 commands between the wall plate and the receiver. The receiver toggle switch also allows for the selection of upgrades that can upgrade both the wall plate and receiver.

Support this HDBaseT system that is already deployed in the field by upgrading firmware through the Micro-USB port on front panel of the wall plate transmitter, and upgrade the firmware through the RS232 port on rear panel of the receiver.

Note: Ensure a solid, reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.

Technical Information

Connectivity Technology:	Wired
Number of Input Devices Supported:	1
Number of Output Devices Supported:	1
Maximum Operating Distance:	230 ft

Video

Graphics Modes:	4K
Supported Video Modes:	1080p
Maximum Video Resolution:	3840 x 2160

Interfaces/Ports

Network (RJ-45):	Yes
HDMI In:	Yes
HDMI Out:	Yes
USB:	Yes
Number of Network (RJ-45) Ports:	2
Number of USB Ports:	5
Number of HDMI Inputs:	1
Number of HDMI Outputs:	1

Media & Performance

Media Type Supported:	Twisted Pair
Twisted Pair Cable Standard:	Category 7

Physical Characteristics

Product Color:	White
Transmitter Height:	4.16″
Transmitter Width:	1.77″
Transmitter Depth:	1.78″
Receiver Height:	0.98″
Receiver Width:	9.06″
Receiver Depth:	3.55″
Form Factor:	Wall Plate
Transmitter Weight (Approximate):	7.05 oz
Receiver Weight (Approximate):	1.34 lb

Miscellaneous

Package Contents:	1 x Transmitter 1 x Receiver 1 x DC 12V US Power Adapter 1 x Phoenix Connector (3.5mm, 2 Pins) 2 x Phoenix Connector (3.5mm, 3 Pins) 1 x 1 – Gang US Socket Cover, White (with Screws) 2 x Mounting Brackets (with screws) 1 x Manual
Application/Usage:	Commercial
Country of Origin:	China
