General Information

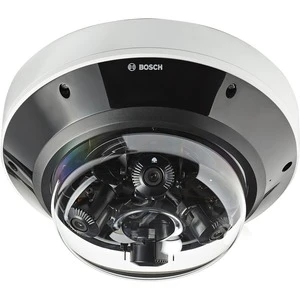

The new FLEXIDOME multi 7000i and FLEXIDOME multi 7000i IR are intelligent multi-directional cameras that combine four independent camera sensors, 3.3-7.7mm AVF lenses with a total resolution of 12 to 20 MP. They provide the ideal solution for wide area coverage like traffic intersections and building corners, where detailed insights of a scene are a must. What’s more? The solution is highly flexible and convenient: although the solution houses four independent camera sensors, it requires only a single network connection, a single IP address and a single Video Management System license.Each imager capitalizes on the Bosch IVA and Camera Trainer technologies utilizing the built-in Artificial Intelligence, taking data usage to a whole new level.

Technical Information

HD Recording:	Yes
Night Vision:	Yes
Night Vision Distance:	98.43 ft
Night Vision Type:	Infrared

Display & Graphics

Image Sensor Type:	CMOS
Image Sensor Size:	1/2.7″
Color Supported:	Monochrome
Color Supported:	Color
Field of View:	Wide: 85.1º x 62º (H x V) Tele: 38.7º x 29.0º (H x V)
Effective Camera Resolution:	20 Megapixel
Number of Sensors:	4

Video

Video Formats:	H.265
Video Formats:	H.265 (HEVC)
Video Formats:	H.264
Video Formats:	MJPEG
Maximum Video Resolution:	2592 x 1944
Maximum Frame Rate:	30 fps

Lens

Lens Type:	Zoom
Minimum Focal Length:	3.70 mm
Maximum Focal Length:	7.70 mm
Lens Included:	Yes
Maximum Aperture:	f/1.9
Optical Zoom:	2.3x

Exposure

Shortest Shutter Speed:	1/15000 Second
Longest Shutter Speed:	1/25 Second

Network & Communication

Connectivity Technology:	Wired
Ethernet Technology:	Ethernet
Protocols:	IPv4
Protocols:	IPv6
Protocols:	UDP
Protocols:	TCP
Protocols:	HTTP
Protocols:	HTTPS
Protocols:	RTP/RTCP
Protocols:	IGMP
Protocols:	IGMP v2
Protocols:	IGMP v3
Protocols:	ICMP
Protocols:	CHAP
Protocols:	LLDP
Protocols:	SOAP
Protocols:	DDNS
Protocols:	DNSv6
Protocols:	DNS
Protocols:	802.1X
Protocols:	SNMPv3 (MIB2)
Protocols:	SNMPv1 (MIB2)
Protocols:	ARP
Protocols:	FTP
Protocols:	RTSP
Protocols:	ICMPv6
Remote Management:	Yes

Storage

Storage Type:

Memory Card

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Input Voltage:	24 V AC
Power Source Type:	AC
Power Source Type:	PoE+

Physical Characteristics

Mount Type:	Wall Mount
Mount Type:	Pipe Mount
Mount Type:	Pendant Mount
Mount Type:	Pole Mount
Mount Type:	Ceiling Mount
Mount Type:	Parapet Mount
Mount Type:	Conduit Mount
Form Factor:	Dome
Durability:	Water Resistant
Durability:	Impact Resistant
Durability:	Dust Resistant
Durability:	Snow Resistant
Durability:	Wind Resistance
Durability:	Rain Resistant
Product Color:	White
Height:	5.4″
Diameter:	10.8″
Weight (Approximate):	7.45 lb

Environmental Conditions

Minimum Operating Temperature:	-58°F (-50°C)
Maximum Operating Temperature:	131°F (55°C)
Operating Humidity:	100%

Miscellaneous

Features:	Ingress Protection
Features:	SD Card Local Storage
Features:	Region of Interest
Features:	Tamper Detection
Features:	Noise Detection
Features:	Day/Night
Features:	White Balance
Features:	Mirror
Features:	Privacy Masking
Features:	Microphone In
Indoor/Outdoor:	Indoor/Outdoor
Impact Protection Rating:	IK10
Ingress Protection Rating:	IP66
TAA Compliant:	Yes
