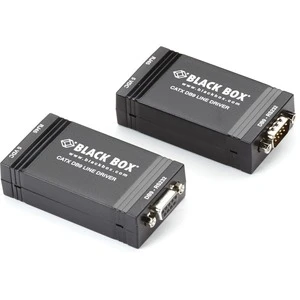

Black Box Async RS232 Extender Over CATx DB9 ME890AR2

• Use long-distance CATx links to communicate with serial devices.
• Control presentations remotely.
• Transfer data between computers.
• Ideal for a wide variety of applications.
• Optical isolated.
• Maximum speed of 250 K.
• Easy installation. The driver provides full-duplex transmission and hardware handshake signals. There’s no need for setup or configuration.

These CATx Line Drivers enable the user to place a receiving device up to 4000 feet away from the sending device. The local unit has a DB9 female connector and is configured as a DCE device; the remote unit has a DB9 male connector and is configured as a DTE device. This allows the local/remote pair to function as a long extension cable between two RS-232 devices. There are no user-configurable settings. These units pass TXD, RXD, RTS, and CTS signals to allow application to use hardware handshake signals if neccessary.

• 1 x Local Unit
• 1 x Remote Unit
• 2 x 120 V Power Supplies

• Cable Requirement CATx
• Connectors Local unit: (1) DB9 F (DCE), (1) RJ-45, (1) power jack;
• Remote unit: (1) DB9 M (DTE), (1) RJ-45, (1) power jack
• Distance 4000 ft. (1219.2 m) maximum
• Interface RS-232
• Operation Asynchronous, full-duplex
• Power Input: 100-240 VAC;
• Output: 12-VDC power adapter
• Speed 250 kbps maximum

• CE
• UL
