General Information

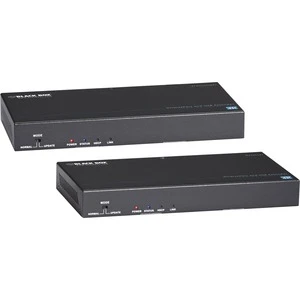

This Black Box DisplayPort & USB 2.0 Extender is designed for highly demanding use cases and is capable of supporting DisplayPort resolutions up to Ultra HD 4K at distances of up to 100m. The Transmitter and Receiver units are electronically isolated from one another removing the risk of damage via ground loop, with USB 2.0 devices one can extend a keyboard, mouse and and other peripheral signals.

Technical Information

Connectivity Technology:	Wired
Number of Input Devices Supported:	1
Number of Output Devices Supported:	1
Maximum Operating Distance:	330 ft

Video

Graphics Modes:	4K
Maximum Video Resolution:	3840 x 2160

Interfaces/Ports

Network (RJ-45):	Yes
USB:	Yes
DisplayPort:	Yes
Number of Network (RJ-45) Ports:	2
Number of USB Ports:	3

Media & Performance

Media Type Supported:	Twisted Pair
Twisted Pair Cable Standard:	Category 7

Physical Characteristics

Transmitter Height:	0.99″
Transmitter Width:	7.91″
Transmitter Depth:	3.95″
Receiver Height:	0.99″
Receiver Width:	7.91″
Receiver Depth:	3.95″
Transmitter Weight (Approximate):	1.10 lb
Receiver Weight (Approximate):	1.10 lb

Miscellaneous

Package Contents:	1 x DisplayPort Transmitter 1 x DisplayPort Receiver 1 x 12-VDC, 2-A power supply with US, EU, UK, and AU power clips 2 x 3.5-mm, 2-pin male Phoenix connectors 2 x Mounting brackets User manual
Environmentally Friendly:	Yes
Environmental Certification:	WEEE
Environmental Certification:	RoHS
Country of Origin:	China
