General Information

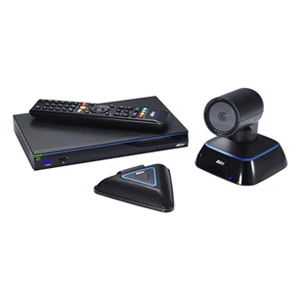

Point-to-point, eCam PTZ with 16X Optical Zoom

The EVC130P is the market’s new price-to-performance leader, offering small to medium-scale organizations a uniquely cost-effective full HD video conferencing solution. The EVC130P features real-time full HD video streaming and real-time HD720p content sharing, a PTZ full HD camera, microphone array, sleek UI and compact system design. In addition, EVC130P’s 3-year standard warranty and low total cost of ownership (TCO) translate into astounding ROI, making it the system of choice for savvy VC users.

Technical Information

ITU-T Recommendation:	H.323
ITU-T Recommendation:	SIP
ITU-T Recommendation:	H.264
ITU-T Recommendation:	H.239
ITU-T Recommendation:	H.224
ITU-T Recommendation:	H.225
ITU-T Recommendation:	H.245
ITU-T Recommendation:	H.281
ITU-T Recommendation:	H.460
Video Bridging:	Point-to-Point

Camera

Image Sensor Type:

CMOS

Video

Graphics Modes:	WSXGA
Graphics Modes (Live):	Full HD
Graphics Modes (Content):	WSXGA
Maximum Video Resolution:	1920 x 1080
Maximum Video Resolution (Live):	1920 x 1080
Maximum Video Resolution (Content):	1440 x 900
Maximum Frame Rate:	30 fps
Video Encoding:	H.261
Video Encoding:	H.263
Video Encoding:	H.263+
Video Encoding:	H.264 High Profile
Video Encoding:	H.264 SVC

Audio

Microphone Form Factor:	External
Audio Encoding:	G.711
Audio Encoding:	G.722
Audio Encoding:	G.722.1
Audio Encoding:	G.722.1C
Audio Encoding:	G.728

Network & Communication

Network Technology:	10/100/1000Base-T
Ethernet Technology:	Gigabit Ethernet

Interfaces/Ports

VGA In:	Yes
VGA Out:	Yes
HDMI Out:	Yes
Audio Line In:	Yes
Audio Line Out:	Yes
Network (RJ-45):	Yes
USB:	Yes
Number of VGA In:	1
Number of VGA Out:	1
Number of HDMI Outputs:	1
Number of Audio Line In:	1
Number of Audio Line Out:	1

Miscellaneous

Package Contents:	Main system unit (codec) EVC eCam PTZ camera EVC microphone array IR remote control with batteries Power supply (12V/5A) VGA cable (3M) Power cord (1.8M) Camera cable (3M) Microphone cable (5M) Network cable (3M) HDMI cable (3M) Warranty card Quick guide
Country of Origin:	Taiwan
