General Information

VE601

DVI HDBaseT-Lite Extender
(HDBaseT Class B)

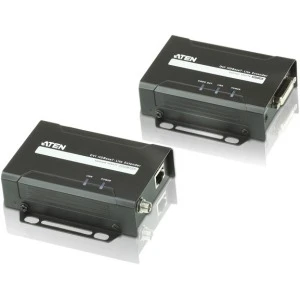

The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.

More from the Manufacturer

Technical Information

Connectivity Technology:	Wired
Number of Input Devices Supported:	1
Number of Output Devices Supported:	1
Maximum Operating Distance:	229.66 ft

Video

Graphics Modes:	WUXGA
Maximum Video Resolution:	1920 x 1200

Interfaces/Ports

Network (RJ-45):	Yes
DVI In:	Yes
DVI Out:	Yes
Number of Network (RJ-45) Ports:	2
Number of DVI Inputs:	1
Number of DVI Outputs:	1

Media & Performance

Media Type Supported:	Twisted Pair
Twisted Pair Cable Standard:	Category 6a

Physical Characteristics

Transmitter Height:	1.20″
Transmitter Width:	3.40″
Transmitter Depth:	4.10″
Transmitter Weight (Approximate):	1.20 lb

Miscellaneous

Package Contents:	1 x VE601T DVI HDBaseT-Lite Extender 1 x VE601R DVI HDBaseT-Lite Extender 2 x Power Adapters 1 x User Instructions
Environmentally Friendly:	Yes
