General Information

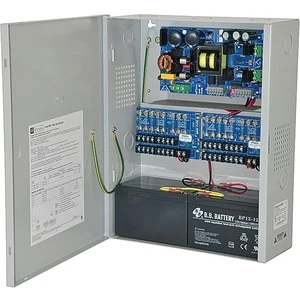

eFlow104NX16 is a power supply/charger that converts a 120VAC 60Hz input into sixteen fuse protected 24VDC outputs with a total of 10 amps max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Power Description

Input Voltage:	120 V AC
Output Voltage:	24 V DC
Output Voltage Detail:	24 V DC @ 10 A
Output Current:	10 A

Physical Characteristics

Form Factor:	Wall Mount
Height:	15.5″
Width:	12.3″
Depth:	4.5″
Weight (Approximate):	9.95 lb

Miscellaneous

Compatibility:	Access Control System Burglar Alarm System Fire Protective Signaling System
Country of Origin:	United States
Environmentally Friendly:	Yes
Environmental Compliance:	Restriction of Hazardous Substances (RoHS)
