General Information

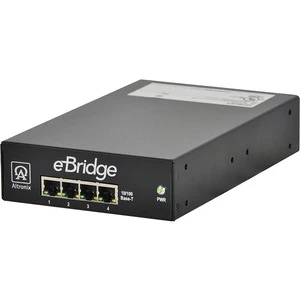

The eBridge4CR is a CAT5 to Coax cable Ethernet receiver. The receiver enables fast 10/100Base-T Ethernet digital communication to be received over Coax cable. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition data transmission over the Coax can be extended to 1500′ (five times the 100m/328ft Ethernet maximum length), eliminating the need for repeaters. At the same time the unit can combine Composite Video Signal with the Ethernet data enabling connection to an analog input on a monitor or matrix switch. The eBridge4CR is to be used with a compatible Sony Hybrid cameras with “sloc” technology. An eBridge1CT is required for other IP cameras/devices.

Interfaces/Ports

Total Number of Ports:	4
Network (RJ-45):	Yes
DVI:	No
USB:	No
Parallel Port:	No
Digital Audio:	No
Digital Audio/Video:	No
Management Port:	No
Number of Network (RJ-45) Ports:	4

Media & Performance

Media Type Supported:	Twisted Pair
Media Type Supported:	Coaxial
Maximum Distance Supported:	1500 ft

Network & Communication

Ethernet Technology:	Fast Ethernet
Network Technology:	10/100Base-TX

Physical Characteristics

Form Factor:	Desktop
Height:	1.7″
Width:	5.2″
Depth:	8.9″
Weight (Approximate):	2.90 lb

Miscellaneous

Certifications & Standards:	UL listed for Information Technology Equipment (UL 60950-1) CUL Listed for Information Technology Equipment (UL 60950-1) CE Approved C-TICK Compliant (Z1409)
Country of Origin:	United States
