General Information

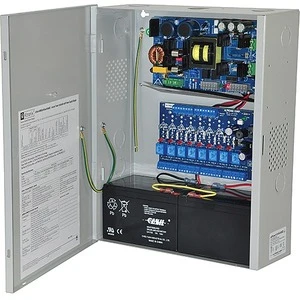

eFlow104NA8D distributes and switches power to access control systems and accessories. It converts a 120VAC 60Hz input into eight (8) independently controlled 24VDC PTC protected outputs. These power outputs can be converted to dry form “C” contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Power Description

Input Voltage:	120 V AC
Output Voltage:	24 V DC
Output Voltage Detail:	24 V DC @ 10 A
Output Current:	10 A

Physical Characteristics

Form Factor:	Wall Mount
Height:	15.5″
Width:	12.3″
Depth:	4.5″
Weight (Approximate):	8.90 lb

Miscellaneous

Compatibility:	Access Control System Burglar Alarm System
Country of Origin:	United States
Environmentally Friendly:	Yes
Environmental Compliance:	Restriction of Hazardous Substances (RoHS)
