General Information

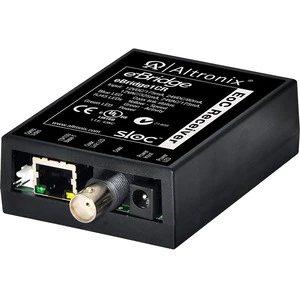

The eBridge1CR is a CAT5 to Coax cable Ethernet adapter. The receiver enables fast 10/100Base-T Ethernet digital communication to be received over Coax cable. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition data transmission over the Coax can be extended to 1500′ (five times the 100m/328ft Ethernet maximum length), eliminating the need for repeaters. At the same time the unit can combine Composite Video Signal with the Ethernet data enabling connection to an analog input on a monitor or matrix switch. The eBridge1CR must be used with and eBridge1CT or a compatible Hybrid camera/device with the “sloc” technology.

Interfaces/Ports

Total Number of Ports:	2
Network (RJ-45):	Yes
DVI:	No
USB:	No
Parallel Port:	No
Digital Audio:	No
Digital Audio/Video:	No
Management Port:	No
Number of Network (RJ-45) Ports:	1
Number of BNC Ports:	1

Media & Performance

Media Type Supported:	Coaxial
Media Type Supported:	Twisted Pair
Maximum Distance Supported:	1500 ft

Network & Communication

Ethernet Technology:	Fast Ethernet
Network Technology:	10/100Base-TX

Physical Characteristics

Form Factor:	Desktop
Height:	1″
Width:	2.5″
Depth:	3.8″
Weight (Approximate):	3.36 oz

Miscellaneous

Package Contents:	eBridge1CR – IP over Coax Receiver Composite Video Cables 2 x Power Connectors
Certifications & Standards:	UL listed for Information Technology Equipment (UL 60950-1) CUL Listed for Information Technology Equipment (UL 60950-1) CE Approved C-TICK Approved (Z1409)
Environmentally Friendly:	Yes
Environmental Compliance:	Restriction of Hazardous Substances (RoHS)
Country of Origin:	United States
