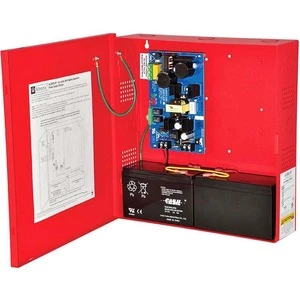

Altronix AC Power Supply AL300ULXR

Model AL300ULXR power supply converts a 115VAC 60Hz input, to a 2.5 amp of continuous supply current @ 12VDC or 24VDC non-power limited output.

AC input and DC output LED indicators

• Class 2 Rated power limited output
• Filtered and electronically regulated outputs
• Short circuit and thermal overload protection
• Built-in charger for sealed lead acid or gel type battery backup
• Maximum charge current 0.7 amp
• Zero voltage drop upon transfer to battery backup
• AC fail supervision
• Low battery and battery presence supervision
• Red enclosure
• Accommodates up to two (2) 12VDC/7AH batteries

• UL Listed for:

• Access Control Systems (UL294)
• Burglar Alarms Systems (UL603)
• Hospital Signaling and Nurse Call Equipment (UL1069)
• Power Supplies for Fire Protective Signaling Systems (UL1481)

• cUL Listed:

• CSA Standard C22.2 No.205-M1983
• Signal Equipment

• CSFM – California State Fire Marshal
• MEA – NYC Department of Buildings
• NFPA 72
