General Information

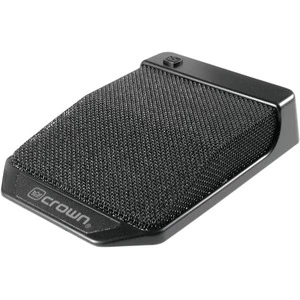

The PCC170 and the PCC170 SW are professional boundary layer microphones with supercardioid polar pattern to minimize background noise and feedback. The microphones are designed for use on boardroom tables or lecterns. Both microphones provide a bass-tilt switch, allowing the user to tailor the low-end response and reduce subsonic noise. The included RFI suppression ensures trouble-free operation even with active cell phones nearby. The PCC170 SW has a silent-operating programmable membrane switch that can be configured for touch on/off, momentary on or momentary off. For easy installation, both microphones offer an XLR connector and a detachable cable.

Technical Information

Connectivity Technology:	Wired
Minimum Frequency Response:	50 Hz
Maximum Frequency Response:	20 kHz

Microphone

Microphone Technology:	Condenser
Polar Pattern:	Super-cardioid

Interfaces/Ports

Host Interface:

XLR

Physical Characteristics

Height:	0.9″
Width:	3.4″
Length:	4.8″

Miscellaneous

Package Contents:	Professional Boundary Layer Microphone With On/Off Switch 1 x Mini XLR to XLR Cable
Country of Origin:	China
Environmentally Friendly:	Yes
