General Information

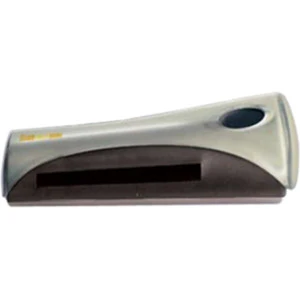

The mobile A6 Scanshell 800NR sheet-fed twain compatible color scanning device which interfaces to any standard USB port. It is the scanning solution of Photo, Business Card, Bank Check, ID card, driving License, and Lottery Ticket. The ideal compact design and scanning quality makes it a perfect companion for your computer facility. Saving and keeping the information of Bank Check, ID Card, and Photo quickly and clearly.

Technical Information

Large Format:	No
Image Sensor Type:	CIS
Image Sensor Type:	CMOS
Optical Resolution:	600 dpi
Scan Color:	Color
Color Depth:	24-bit
Grayscale Depth:	8-bit
Maximum Mono Scan Speed (ppm):	6
Maximum Color Scan Speed (ppm):	3
Media Type:	Photo
Media Type:	Cheques
Media Type:	Business Card
Media Type:	ID Card
Media Type:	License
Media Type:	Laminated Material
Media Type:	Plain Paper
Media Size:	A6 5.83″ x 4.13″
Media Size:	4.20″ x 7″
Maximum Scan Size:	4.20″ x 7″
Scanning Modes:	Simplex
Automatic Document Feeder Included:	No

Interfaces/Ports

USB:	Yes
USB Standard:	USB 2.0

Software

Software Included:	IDscan OCR Medicscan OCR Scanshell.net DocShell Scan2Contacts Software Development Kit
Operating System Supported:	Windows

Power Description

Power Source:	USB
Operating Power Consumption:	2 W
Standby Power Consumption:	200 mW

Physical Characteristics

Form Factor:	Portable
Height:	1.6″
Width:	2″
Depth:	7.3″
Weight (Approximate):	7.41 oz

Miscellaneous

Package Contents:	ScanShell 800NR Card Scanner Software CD
System Requirements:	Windows 7, Vista, XP, 2000 Pentium 100MHz or higher CPU 64MB of DRAM or above VGA monitor with true color and at least 800×600 pixels 60 MB free disk space One USB port A CD-ROM drive
Certifications & Standards:	FCC Class B CE USB-IF.org TWAIN
Platform Supported:	PC
Environmentally Friendly:	Yes
Environmental Certification:	WEEE
Environmental Certification:	RoHS
